Porter X-Base - mediatechnologies

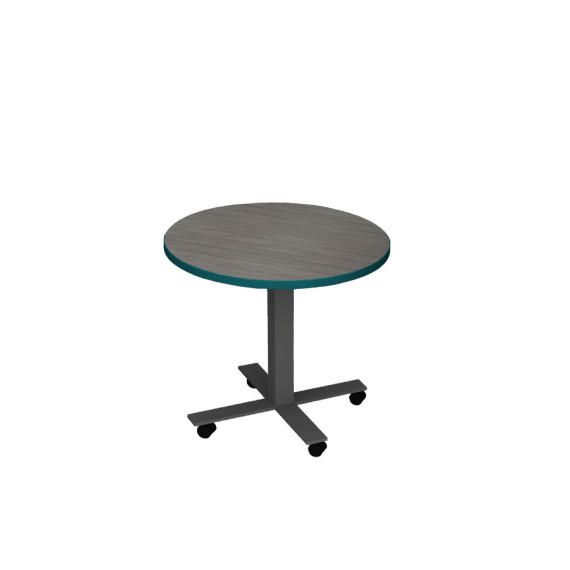

PX26-C0030-ADJPN-4C

Add to My Project Board

Log in or create an account to create a project board.

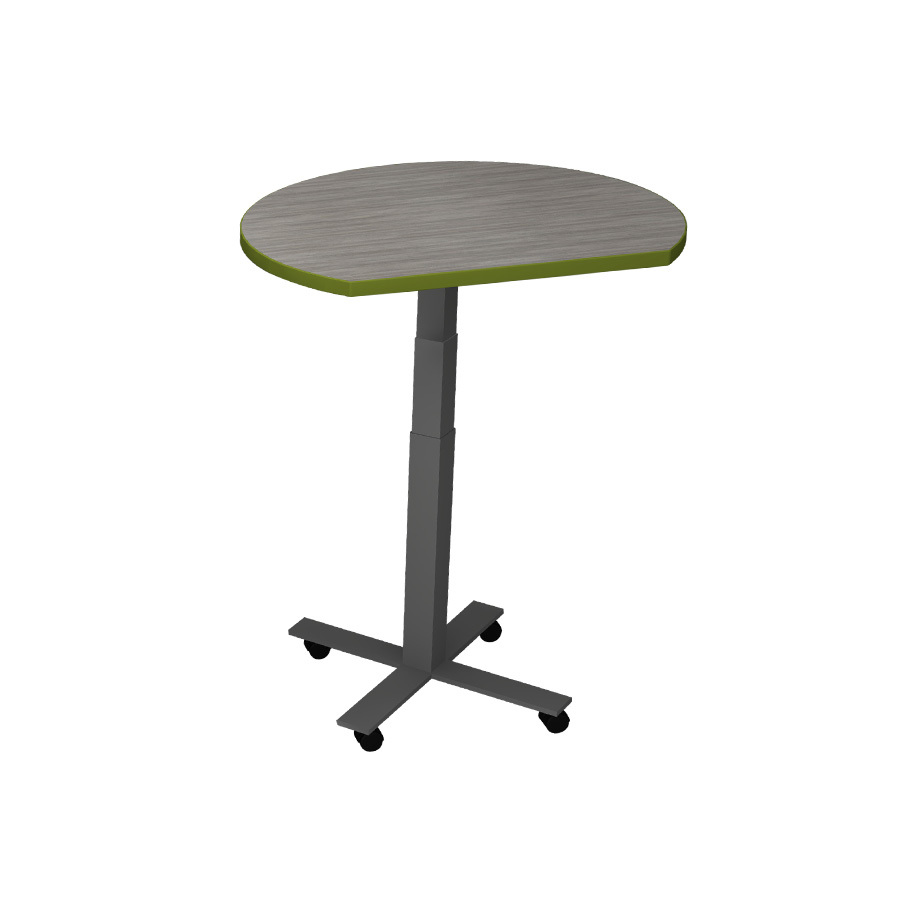

Porter X-Base - mediatechnologies

PX26-C29/34F-ADJPN-4C

Add to My Project Board

Log in or create an account to create a project board.

Porter X-Base - mediatechnologies

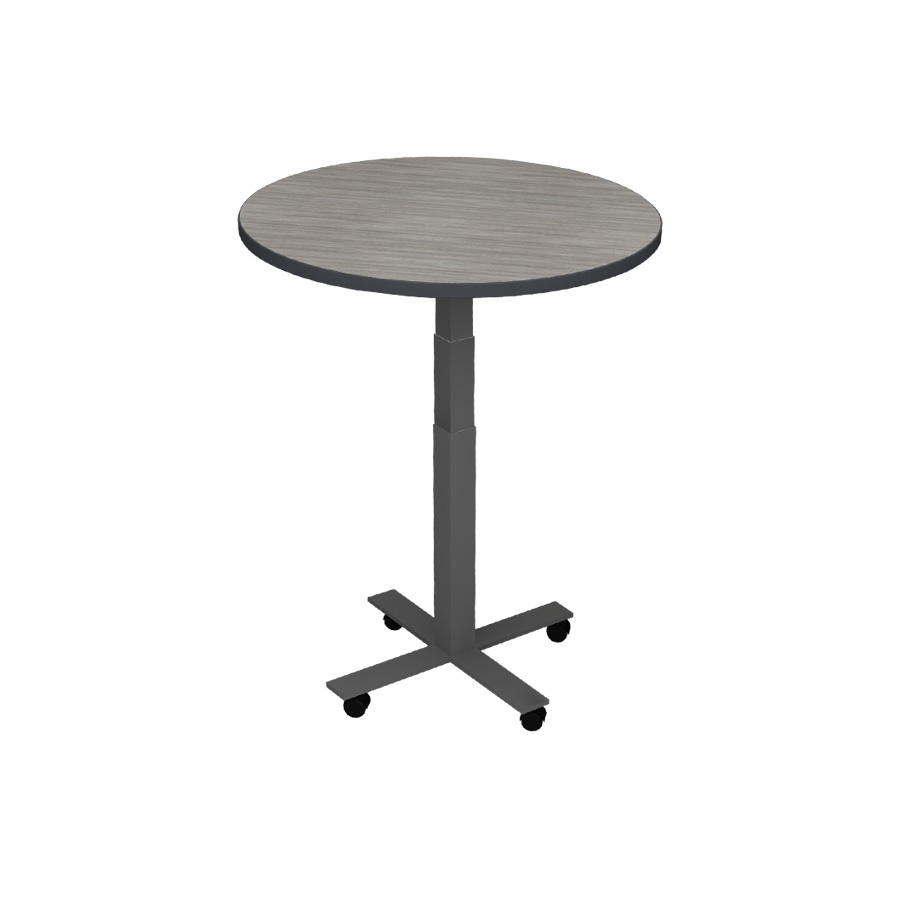

PX2-C0036-ADJPN-4C

Add to My Project Board

Log in or create an account to create a project board.

Porter X-Base - mediatechnologies

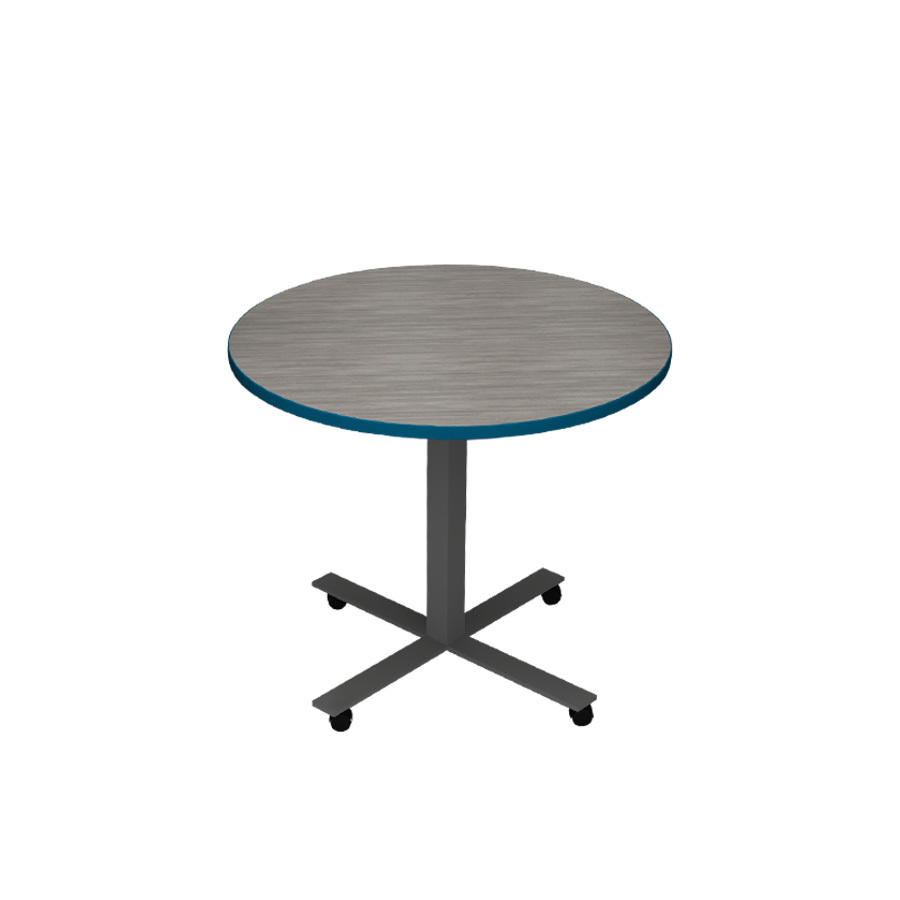

PX36-C0042-ADJPN-4C

Add to My Project Board

Log in or create an account to create a project board.

Porter X-Base - mediatechnologies

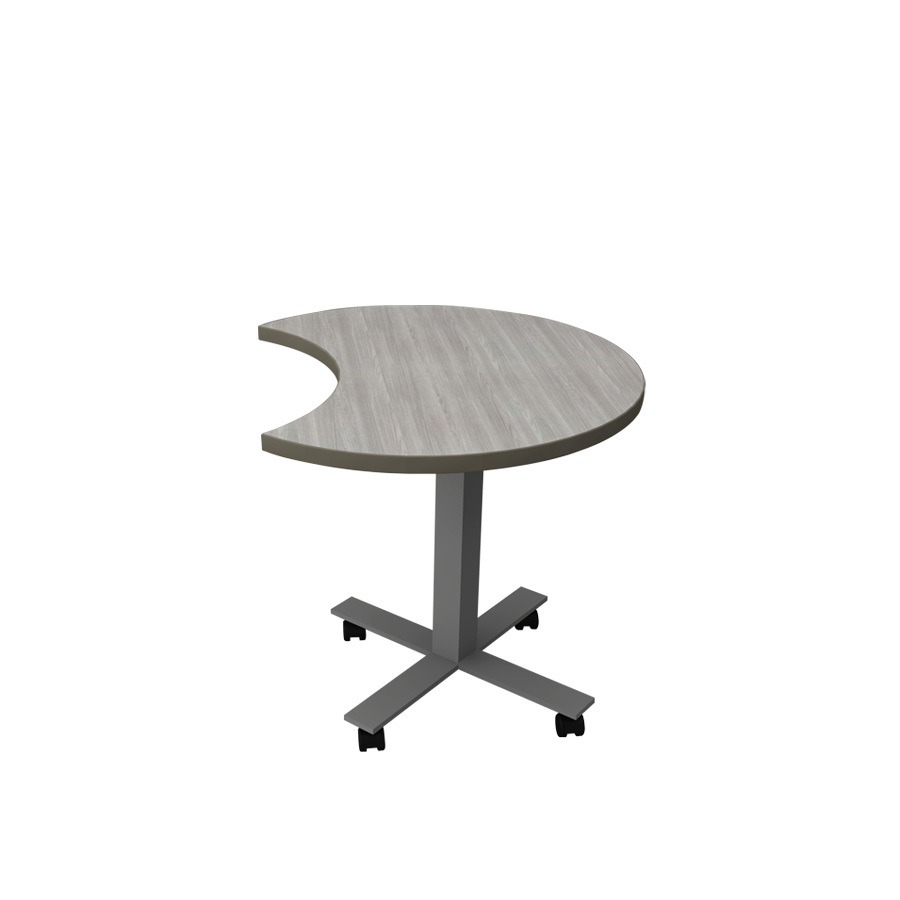

PX26-C29/34C-ADJPN-4C (Porter X-base mates with Jane Desk)

Add to My Project Board

Log in or create an account to create a project board.

Porter X-Base - mediatechnologies

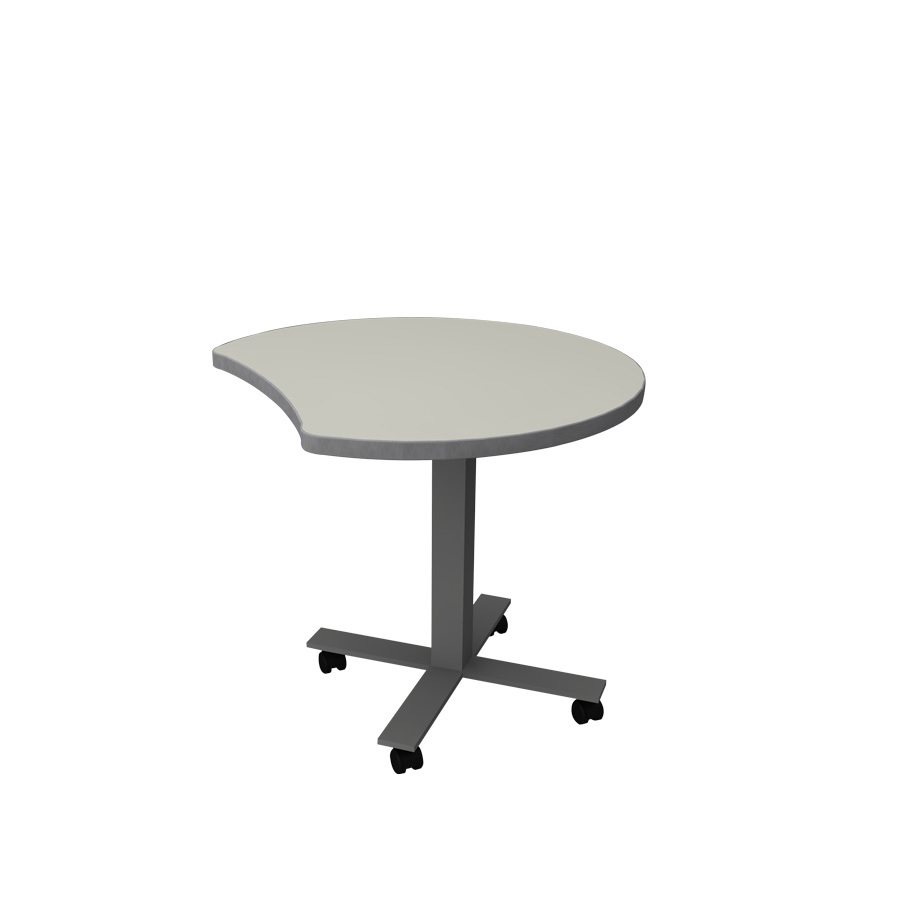

PX26-C29/34N-ADJPN-4C (Porter X-base mates with Nomad Desk)

Add to My Project Board

Log in or create an account to create a project board.

Porter X-Base - mediatechnologies

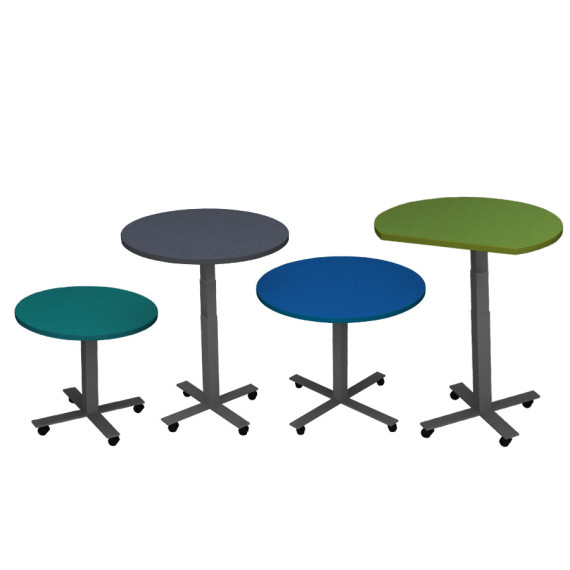

Porter X-Base Adjustable Height Tables shown at min-mid-max heights

Add to My Project Board

Log in or create an account to create a project board.

Porter X-Base - mediatechnologies

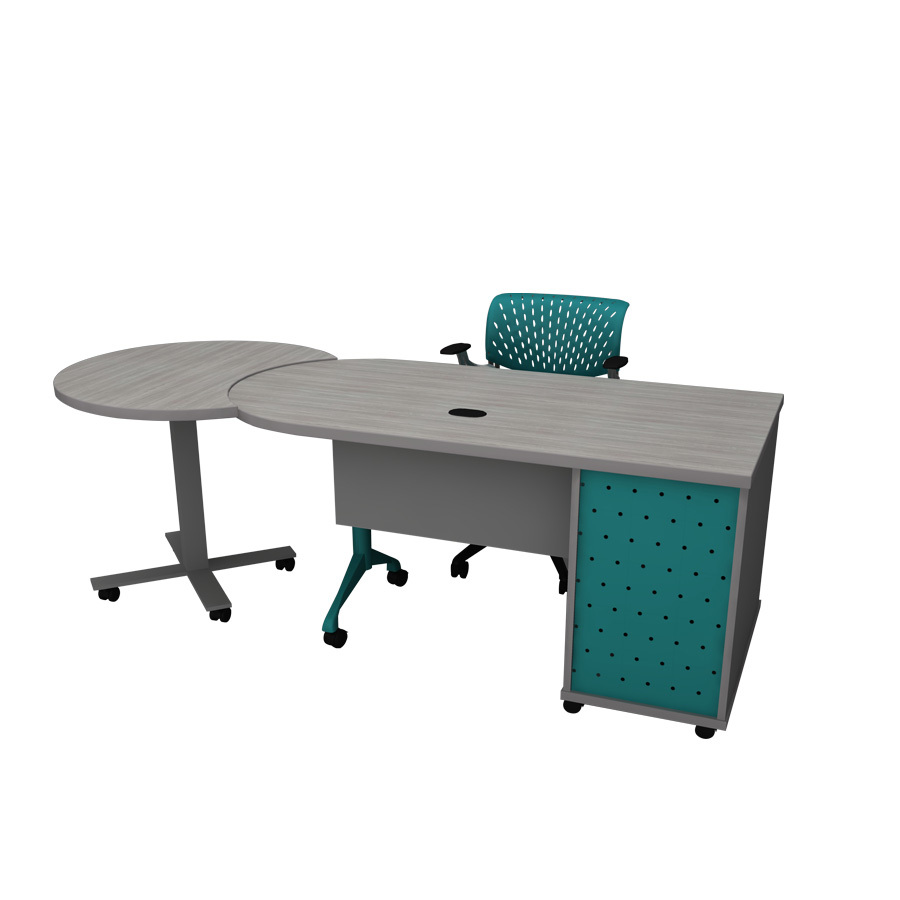

Porter Table mated with Jane and paired with Hannah Task Chair

Add to My Project Board

Log in or create an account to create a project board.

Porter X-Base - mediatechnologies

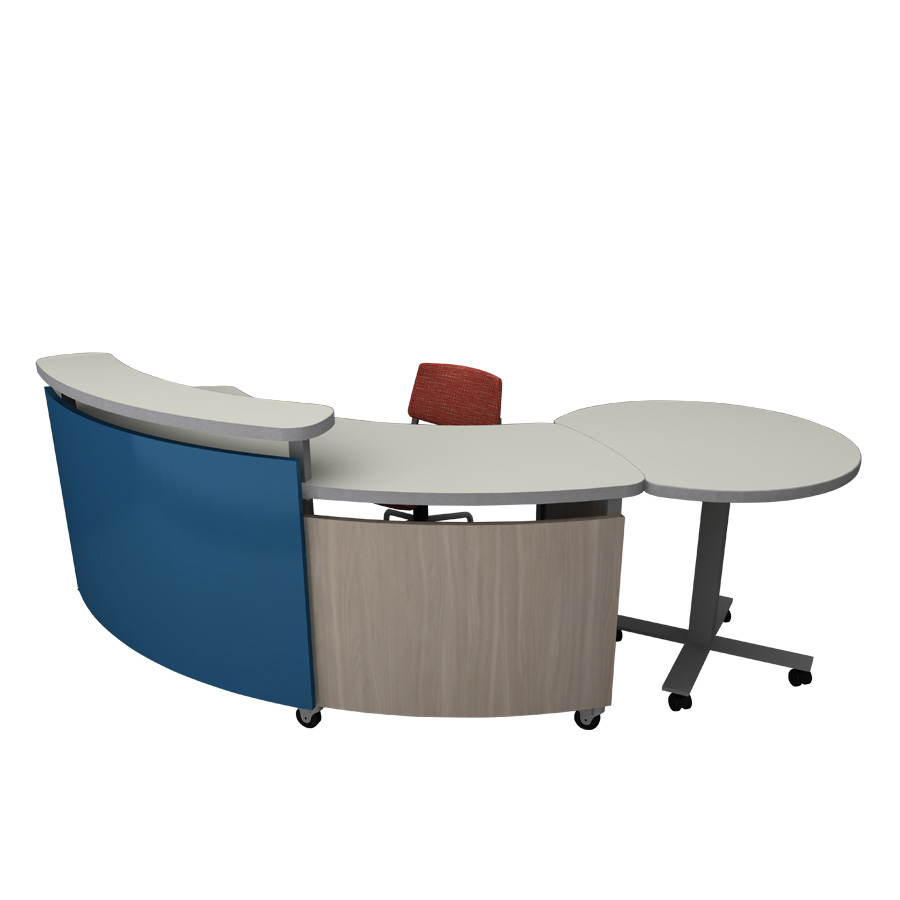

Porter Table mated with Nomad Desk and paired with Arc Task Chair

Add to My Project Board

Log in or create an account to create a project board.

Porter X-Base

A table, a desk, or a lectern. Porter offers on-demand height adjustability by way of a pneumatic arm, and pairs with Nomad and Jane desks to provide supplemental work surface and a home base for presenters.

See Full Description

Cut Sheets
AutoCAD
List Price Sheets

  • Work surface is HPL
  • Powder coated steel frame
  • Non-marring, nylon leveling glides are standard
  • Casters are optional
  • Height Adjustable: 27-1/4" - 45" (glides); 29-1/4" - 47" (casters); 27-1/4" - 41-1/4" (flip-top)

Table Top: Table tops are 1-1/4” thick, three-ply 45# particleboard construction with .050” high-pressure laminate top surface, a .030” phenolic backer and a 3mm PVC edgeband. Square corners on banded tops have a 1/8” radius.

X-Base Pneumatic: Single column is 2mm square powder coated steel tube. Outer tube is 2.76”. Inner tube is 2.48”. Each foot is 3” x ½” machined powder coated steel bar. Each foot is fitted with (2) 5/16”-18 x ½” long threaded stem levelers with black nylon base. Top of column fitted with ¼” powder coated steel mounting plate. Mounting plate is attached to column with set of (4) 8mm bolts at the top and bottom of each column. Base adjustment range with levelers without top is 17-1/2” to 27-1/4”.

Note: Optional casters add 2” to the starting height of the adjustment range.

* Porter Approved - Choose from these powder coats for your Porter Adjustable Height Tables and Desks.
- Silver 809
- Black 912
- Navy 5003

Overall X-Base Dimensions
Diameters: 30", 36", 42"
Heights: 29", 29"-46"

Finishes

Silver 809 (G1) *Porter Approved
Porter Table Powder Coats

OPTIONS: 3

Porter Table is available in 3 Powder Coats.

Neutral Twill 8826-58
General Laminates

OPTIONS: 87

Choose from any currently available standard high pressure laminate or check out other available options from Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Hardrock Maple-CP20332
Standard PVC Selections

OPTIONS: 37

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.
