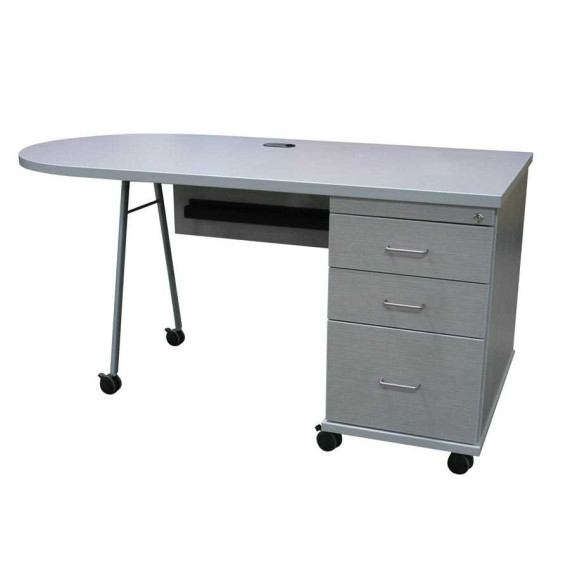

JN2R-C3060L-29

Add to My Project Board

Log in or create an account to create a project board.

Jane - mediatechnologies

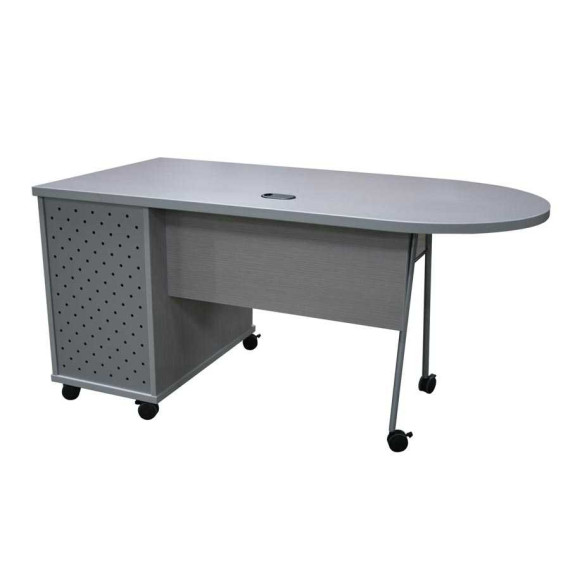

Jane Desk Patron Side

Add to My Project Board

Log in or create an account to create a project board.

Jane - mediatechnologies

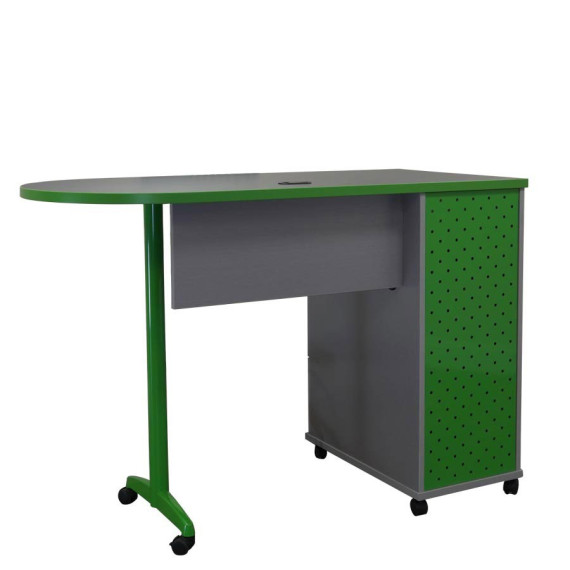

JN2L-C3060L-OSFSD3-42 Powder coated perforated metal front panel

Add to My Project Board

Log in or create an account to create a project board.

Jane - mediatechnologies

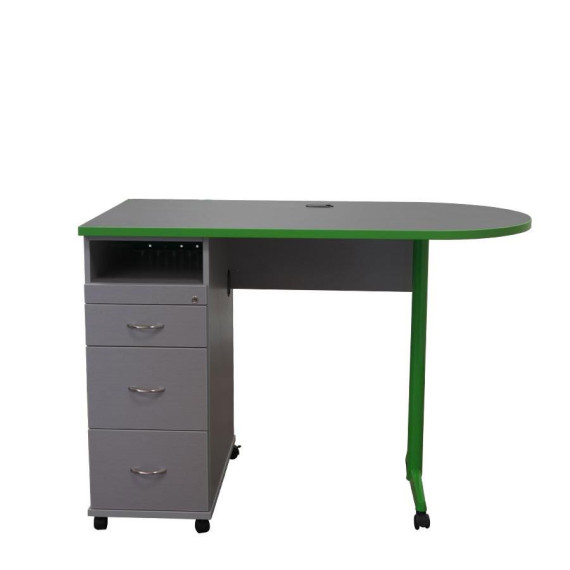

JN2L-C3060L-OSFSD3-42 with Open Storage and 3 Drawers

Add to My Project Board

Log in or create an account to create a project board.

Jane

Jane's generously sized work surface awaits your choice of laminate and PVC selections. The cabinet configurations include a 3-drawer model and a cupboard storage model, both in your choice of laminate (HPL) or melamine (TFL) finish. The unit is attached to a powder coated steel frame (again, your choice of finish). The cabinet unit uses (4) casters beneath the steel frame assembly and the leg assembly receives (2) 60mm casters with brakes. Jane is available in three heights - 29"H, 36"H and 42"H. The 36"H and 42"H models feature an open storage area above the drawers or cupboard storage.

Did you know you can order Jane in a Right-hand or left-hand version? That's right! The Left-hand version (JN2L) features the cabinet on the left side of the user. The Right-hand version (JN2R) features the cabinet on the right side of the user. (Just in case you did not know, the "user" side is the side you can slide a seat under - with the drawer pulls."

See Full Description

Cut Sheets
List Price Sheets

  • Cabinet is constructed with 3/4" thick engineered wood with either thermally fused laminate or high pressure laminate box finish and 3mm PVC.
  • 29"H model cabinet receives two box and one file drawer with full extension 100# ball bearing drawer slides or cupboard storage with a base shelf and an adjustable shelf.
  • 36"H model cabinet receives an open storage area, two box and one file drawer with full extension 100# ball bearing drawer slides or or an open storage area with cupboard storage with a base shelf and an adjustable shelf.
  • 42"H model cabinet receives an open storage area, one box and two file drawer with full extension 100# ball bearing drawer slides or or an open storage area with cupboard storage with a base shelf and an adjustable shelf.
  • Frame is 11 gauge 1-1/4" square steel tubing. Frame assembly is attached to cabinet using wood screws. Mobile cabinet unit uses (4) casters that attached via threaded inserts on the underside of the steel frame assembly.
  • Bullet-shaped top is 1" thick, three-ply particleboard with .050" high-pressure laminate top surface and .030" phenolic backer. Edges are 3mm PVC (C). Corners on rectilinear end are square with 1/8" radius. (2) oval grommets are provided. One located in the work surface and one located in the cabinet wall beneath the desk work surface. Tables are fitted with a matching laminate modesty panel.
  • Cabinet is available positioned on the left(JN2L) or the right (JN2R) from the user position.
  • Desk leg assembly: Leg set is 1-1/4" , 14-gauge powder coated steel tubing. A steel brace is welded between the two legs for added stability. The legs are welded to a 3/16" thick steel top plate. The bottom of each leg is capped with a 1/4” plate and bored and tapped to allow the attachment of Twin-wheel locking casters. On 36”H and 42”H models, a cast aluminum base has one 2-1/4”diameter column with bolted horizontal cast aluminum base and fabricated steel mounting plate .187”thick x 6”D x 8”W. Bases are fitted with twin wheel locking casters..

Overall Dimensions Depth: 30" Width: 60" Heights: 29", 36", 42"

Finishes

Hardrock Maple - CP20332
PVC

OPTIONS: 27

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.

9311-58 Silver Oak Herringbone
General Laminates

OPTIONS: 82

Choose from any currently available standard high pressure laminate or check out other available options from

Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

809 Silver
Powder Coat Colors

OPTIONS: 15

Classic to funky finishes available. Match your powder coats with your PVC for fresh and fun look! All chairs are available in G2 powder coat colors. Tables may also be specified with G2 powder coat colors. There is a one time charge per order/color for these powder coats.

Stainless Aluminum w/ Rio Texture (G1)
Melamines (TFL)

OPTIONS: 27

Coordinating PVC and HPL finishes are available for most melamine selections. PVC not available for Stainless Aluminum.
