Transition Kit H - mediatechnologies

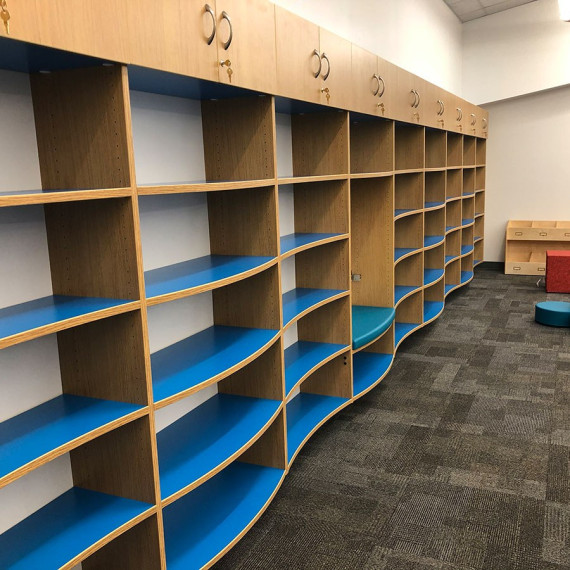

Transition shelving with integrated upholstered seat. Shown with upper cabinet doors and Wave shelves

Add to My Project Board

Log in or create an account to create a project board.

Transition Kit H

Layout H is track mounted storage kit with an integrated seat. Each starter and adder unit in this kit (4 total) includes fixed and tab cam adjustable shelves.

All panels and shelves are 1" thick engineered wood with melamine finish and PVC banding.

The seat is 37"W and 13"D with an upholstered seat cushion. This kit is priced with Grade 3 fabric.

This kit can be expanded with additional track and transition components.

See Full Description

Cut Sheets
AutoCAD
List Price Sheets
Instructions
Brochures

  • (2) HT96 - 96" W Horizontal track
  • (4) HTAEC - Horizontal Track End Cap
  • (1) TRN-SB-842413-T - 84"H x 26"W x 13"D Starter Unit
  • (1) TRN-SB-842413A-T - 84"H x 25"W x 13"D Adder Unit
  • (1) TRN-SB-843613A-T - 84"H x 36"W x 13"D Adder Unit
  • (1) TRN-SH36F-SEAT-13-T-G3 - 36"W X 13"D Upholstered Seat, Grade 3
  • Overall Unit Width: 94"
  • Weight: 396 lbs.

Note: Starter unit widths include the width of the shelf plus the width of two end panels (shelf width plus 2"). Adder unit widths include the length of the shelf plus the width of one intermediate panel (shelf width plus 1"). Overall base cabinet height is expressed including the 6" space between the floor and the bottom of the base cabinet.
