Rubix 72"HIGH

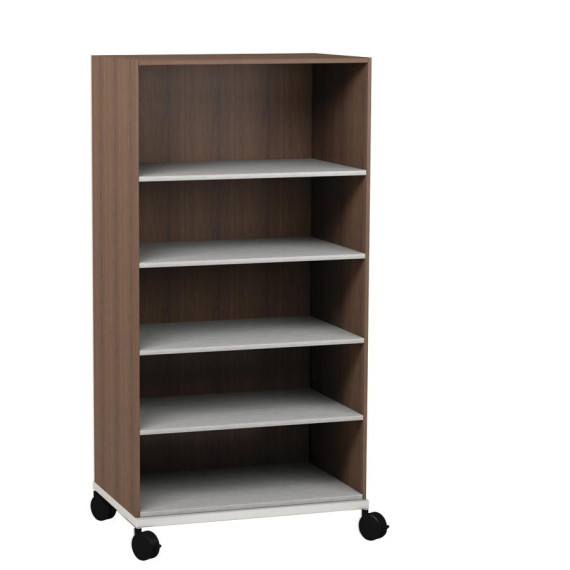

Standard Open Storage Freestanding and Mobile cabinets are available in widths of 36", 48", 60" and 72". Available heights include 29", 36", 42", 54" and * 72". Cabinets are 18" or 24" deep. * 72" H cabinets are only available in 24" Depth.

All cabinet tops are high pressure laminate and boxes are available in high pressure laminate, melamine oak veneer and maple veneer finish. Steel frame is powder coated.

Drawers come on full-extension slides.

Choose from our selection of hinges and pulls.

Locks are optional.

Freestanding units come equipped with 3" support legs and mobile units come equipped with 75mm casters.

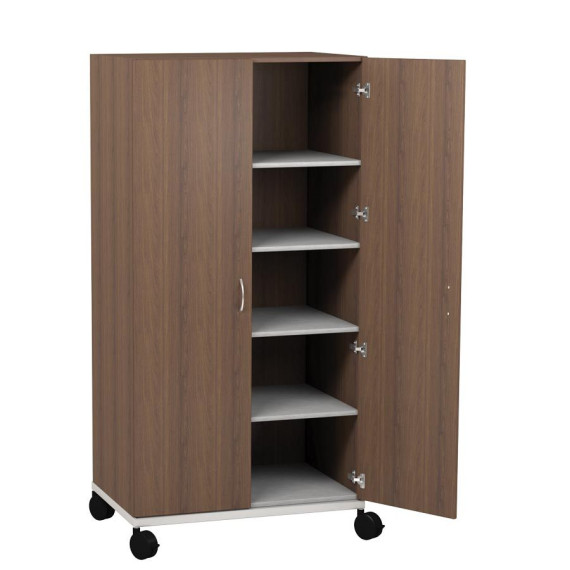

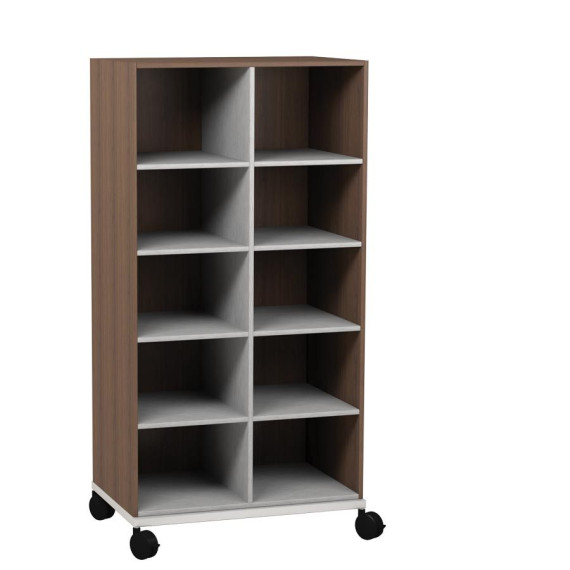

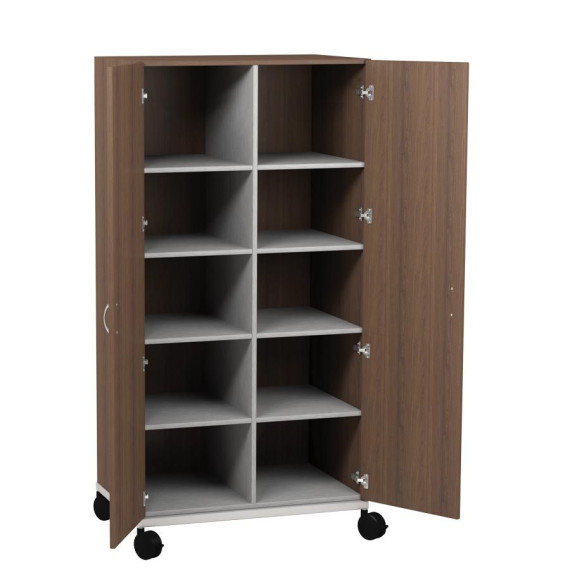

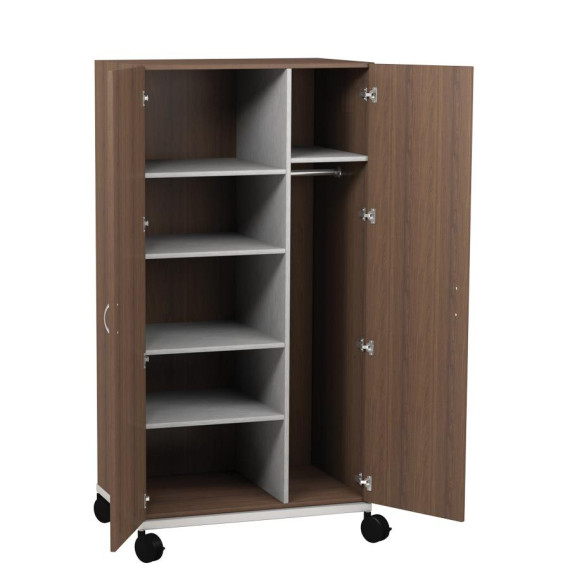

72"H units with doors have 1 or 2 fixed shelves. Units with a full height vertical divider have 2 fixed shelves. Units with a less-than full height or no vertical divider have 1 fixed shelf. The remainder of the shelves provided are adjustable.

Not all configurations are available in every dimension combination.

See Full Description

Cut Sheets

Rubix 72"W Cut Sheet (.pdf, 972.091 KB)
Rubix 60"W Cut Sheet (.pdf, 855.716 KB)
Rubix 48"W Cut Sheet (.pdf, 836.776 KB)
Rubix 36"W Cut Sheet (.pdf, 893.238 KB)

Forms

Rubix Finish Designator (.pdf, 512.36 KB)

Overview

High pressure laminate worksurfaces
Cabinet material options include thermally fused laminate and high
pressure laminate with PVC edges and oak or maple veneer with wood edges.
Backs are 3/4” engineered wood
Steel frame is 11-gauge 1-1/4” square steel tubing. Frame assembly is attached to the cabinet using wood screws.
Concealed door hinges and a variety of pulls available.
Full-extension drawers

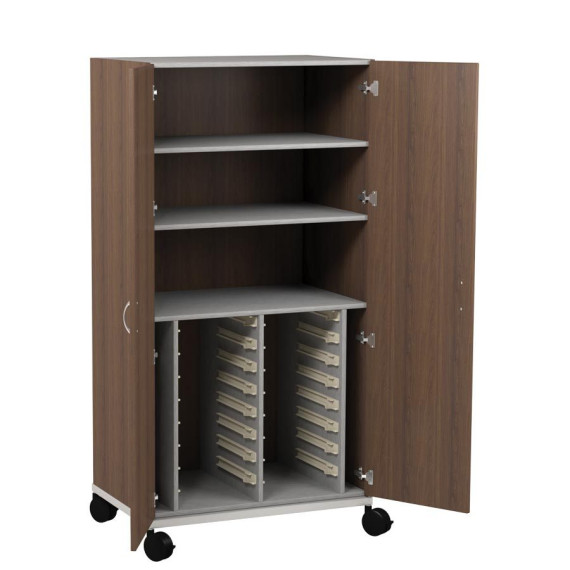

Tote rails that are stop-and-tilt or fully extractable.
Shelves adjustable in 32mm increments
Rugged 75mm twin wheel locking casters that attach via threaded inserts on the underside of the steel frame assembly.
Freestanding steel support legs are available upon request.
