Pocket Café Counter

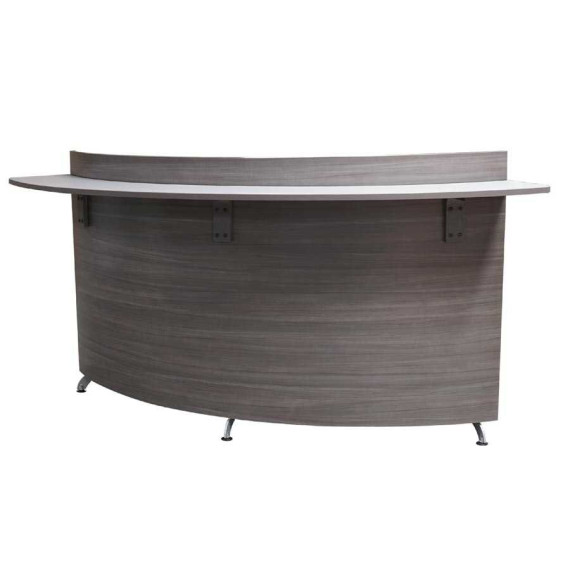

Pocket Café Counter is a quarter-round (90˚) settee with a counter-height work surface integrated into the back panel. It is a great interactive component for team seating applications. Pairs well with round, "D" and "lightbulb" shaped table tops, Pocket Lounge settees and is a great seating option for our Crayon mediasharing table.

Plenty of seating options are available for the counter area. Look at our Toadstool, Push Pop, Bella and Slide Stools for some really great choices.

See Full Description

Cut Sheets
AutoCAD
Forms
List Price Sheets

  • Bench Base and Bench Back Assembly: The bench base assembly is fabricated from 3⁄4” engineered wood with premium grade oak or maple veneer faces or HPL faces. Finished edges of veneer assemblies receive a 3mm solid wood edge. Finished edges of HPL assemblies receive a 3mm PVC edges. Bench Base Assembly is bolted to bench back assembly with metal-to-metal connection. Back panel is fabricated from multiple layers of wiggle board plywood, phenolic backer and laminate sheets. Back panel can be finished in veneer or HPL face and is self-edged.
  • Counter: Counter top is 1” thick engineered wood with .050” high pressure laminate work surface and .030” phenolic backer. Edge is 3mm PVC. Counter is mounted to back through (3) 1” thick veneer ply shelf supports.
  • Leg Assemblies: Legs are fabricated from 5/16 plate steel and include a curved profile with a square mounting plate. The bottom of each leg is fitted with a threaded weld nut and a 1-7/8” black leveling glide.

Connectivity option is available on flat surfaces of the bench base.

Overall Dimensions

Depth: 37-5/32" Width: 96" Overall Height: 46" Seat Height: 18" Counter Height: 36", 42"

Note: Pocket Café Counter is not designed to mate with Duo Lounge or Duo Café Counter. Pocket Café Counter does mate with Pocket Lounge

Fabrics

Finishes

Hardrock Maple - CP20332
PVC

OPTIONS: 25

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.

Amber Maple7012 58
Laminate - Wood Grain

OPTIONS: 11

Our Wood Grain laminates are designed to match our Oak and Maple Finishes.
* Wood is a natural product and laminate is manufactured. The grain and color may vary.

9311 58 Silver Oak Herringbone
General Laminates

OPTIONS: 28

Choose from any currently available standard high pressure laminate or check out other available options from

Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Vibrant Green 6901 58
Laminate Seating+

OPTIONS: 16

Seating+ Laminates for shell chairs and more is a collection of standard laminates for shell chair use. Some of these patterns/colors are also available for tables.

These are special laminates selected for our Bella, Romak and Slide seating. Can combine these laminates for a unique "front/back" appearance.

809 Silver
Powder Coat Colors

OPTIONS: 15

Classic to funky finishes available. Match your powder coats with your PVC for fresh and fun look! All chairs are available in G2 powder coat colors. Tables may also be specified with G2 powder coat colors. There is a one time charge per order/color for these powder coats.
