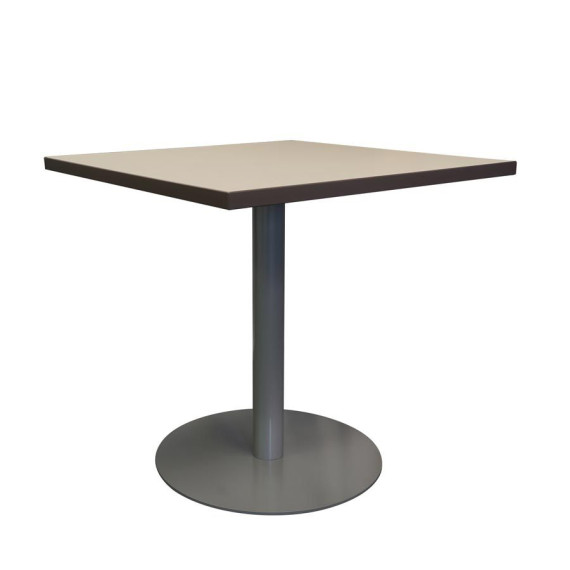

O27-C3030-29 - Sail White - Medium Tone PVC

Add to My Project Board

Log in or create an account to create a project board.

Orbit - mediatechnologies

O22-C0036-42

Add to My Project Board

Log in or create an account to create a project board.

Orbit - mediatechnologies

O18-W4242-29-FT

Add to My Project Board

Log in or create an account to create a project board.

Orbit - mediatechnologies

O27-GBT36/4872-29

Add to My Project Board

Log in or create an account to create a project board.

Orbit - mediatechnologies

O22-C36/4872B-29

Add to My Project Board

Log in or create an account to create a project board.

Orbit - mediatechnologies

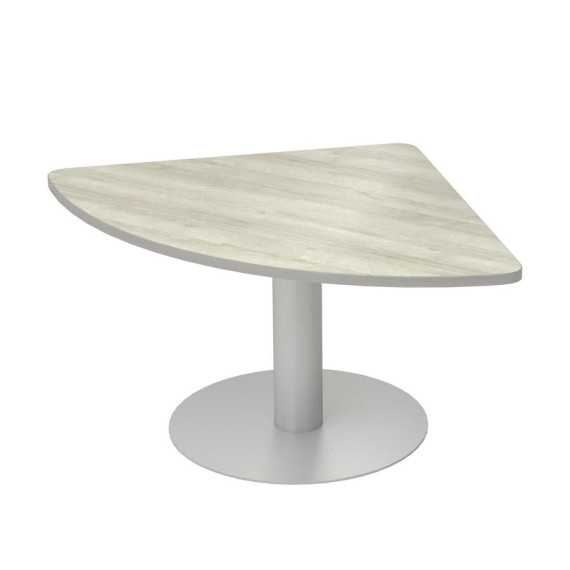

O32-C0048QR-29

Add to My Project Board

Log in or create an account to create a project board.

Orbit - mediatechnologies

O17-C2448-36

Add to My Project Board

Log in or create an account to create a project board.

Orbit - mediatechnologies

O27-C4872-D-29

Add to My Project Board

Log in or create an account to create a project board.

Orbit - mediatechnologies

O22-C3672-42

Add to My Project Board

Log in or create an account to create a project board.

Orbit - mediatechnologies

O32-GRT6096-29

Add to My Project Board

Log in or create an account to create a project board.

Orbit

Low profile disc base, sits flat on the floor and provides a stable base that is easily moved when needed. Top is available in round and square, laminate of your choice. The base is fabricated steel and awaits your choice of powder coat. The variety of sizes and heights available for Orbit allow this table to be used in a multitude of spaces.

See Full Description

Cut Sheets
AutoCAD
Revit
Revit Materials
List Price Sheets
Instructions
Brochures

    • Table Top: Tops are 1-1/4” thick, three ply engineered wood construction with .050” high pressure laminate (HPL) and a phenolic backer sheet. The edges specified for this product are 3mm PVC (“C” prefix to the table size in the part number), 3mm hardwood (“E” prefix to the table size in the part number), 5/8” hardwood bullnose (“G” prefix to the table size in the part number),8mm Wood ("F" prefix to the table size in the part number), Not all edges are available for each table top shape. Refer to the List price Sheets for available edges per top.
    • 17”, 22” & 27” Disc – Single Column: 14-gauge, 3” diameter column, 5/16” thick steel disc plate (size varies depending on table top dimension), 11-gauge stamped steel mounting plate, 9.5” x 9.5”. Mini-levelers come standard and will position the base 3/8” off floor.
    • 32” Disc – Single Column: 16-gauge, 6” diameter column, 5/16” thick steel disc plate (size varies depending on table top dimension), 4-gauge stamped steel mounting plate, 12” x 12”. Standard column base comes with no levelers. Optional levelers are available for an up charge. Optional levelers will position the base 1” off the floor. Contact the factory for optional leveling glides.
    • Flip Top Mechanism: Two-part steel mechanism is joined via a pivot system. Upper component attaches to underside of work surface using 1” #12 wood screws. Lower component bolts to column mounting plate. Flip top mechanism is available for single column tables only.

    Overall Dimensions
    Depths: 24", 30", 36", 48" and 60"
    Widths: 60", 72", 84", 96", *120" and *144"
    Round: 36", 42", 48", 54", 60"
    Square: 36", 42", 48", 54", 60"
    Quarter Round: 48" x 48" Heights: 29", 36", 42"

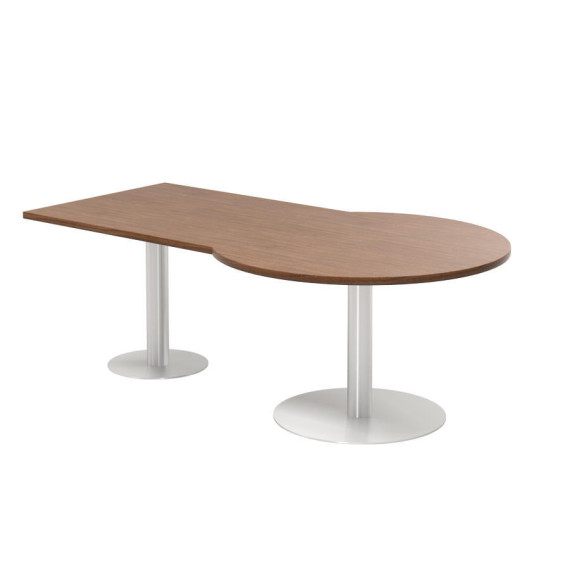

    LightBulb
    Depth:36"
    Widths: 72", 84", 96"
    Diameter: 48"
    Heights: 29", 36", 42"

    D-Shape
    Depth: 36"
    Widths: 72", 84", 96"
    Heights: 29", 36", 42"

    * Note: table widths of 120" or greater require 3 bases.

    Refer to List Price Sheet for standard sizes available.
