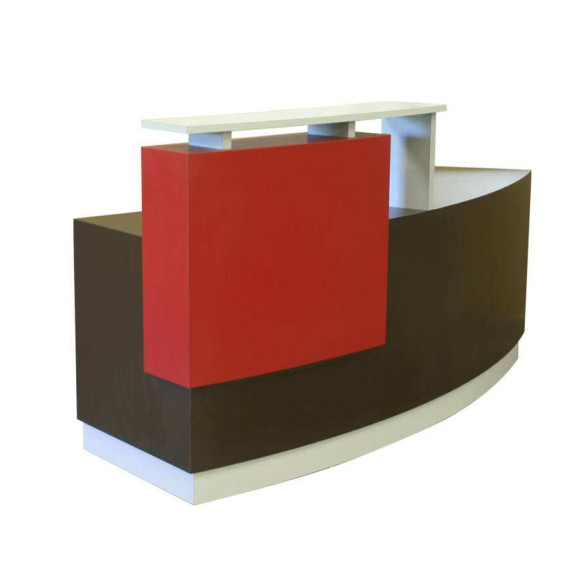

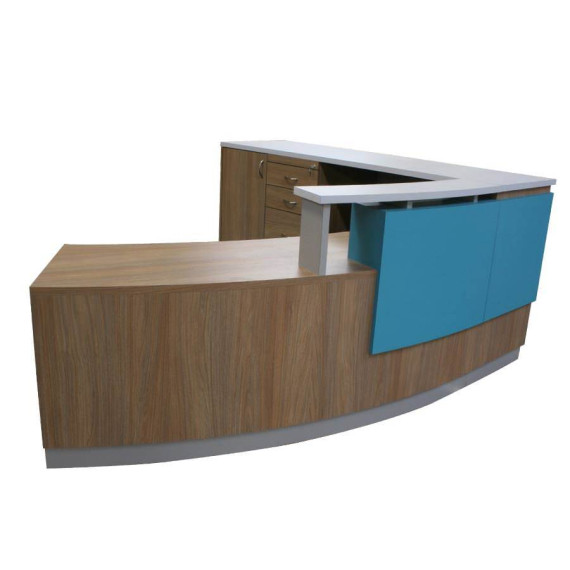

Custom Curved Milan Desk

Add to My Project Board

Log in or create an account to create a project board.

Milan - mediatechnologies

Custom Curved Milan Desk with Storage

Add to My Project Board

Log in or create an account to create a project board.

Milan - mediatechnologies

MLDL-3084-30

Add to My Project Board

Log in or create an account to create a project board.

Milan - mediatechnologies

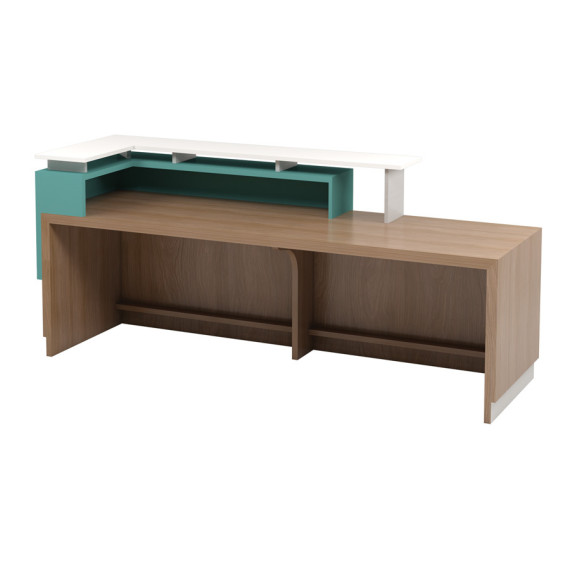

MLDL-3084-30 (user side)

Add to My Project Board

Log in or create an account to create a project board.

Milan - mediatechnologies

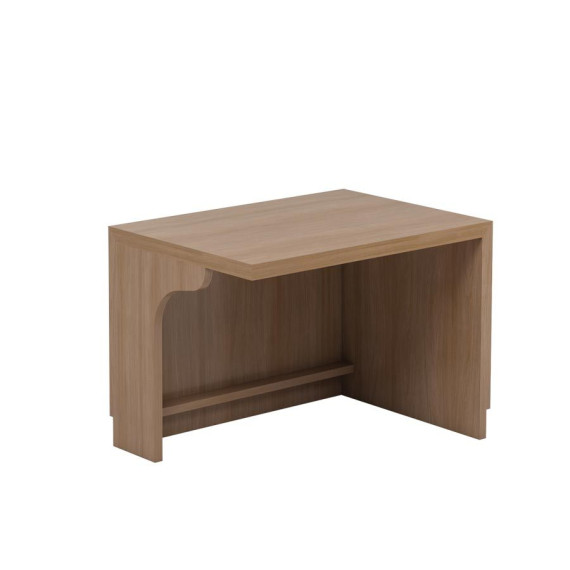

MLRR-C3036-L

Add to My Project Board

Log in or create an account to create a project board.

Milan - mediatechnologies

mediatechnologies

Add to My Project Board

Log in or create an account to create a project board.

Milan

Configure Milan Desk to fit your needs with three sizes of right and left main units and 36” return units. High-pressure laminate work surface. Transaction top included on main desk units. Grommets are available and should be ordered separately. Available in premium wood veneer or high-pressure laminate finishes. Contact the factory about combining finishes for a unique signature piece or to match a design motif. Power and connectivity available, see our Connect brochure for available options.

See Full Description

Cut Sheets
AutoCAD
Forms
List Price Sheets

  • Main Desk Base/Toe: The main desk unit is comprised of two (2) end panels of 1-1/8” particle board core with high-pressure laminate or wood veneer finish on one surface and .030” phenolic backer on the other, each with a 3/4” thick particle board core overlay panel with .050” high-pressure laminate or wood veneer finish. The end panels are fastened to an 11/16” particle board front face panel with .050” high-pressure laminate or wood veneer finish. The unit sits on a 4” high toe of 11/16” particle board core with high-pressure laminate faces. All edges are self edge. The work surface is 3/4” thick particle board core with .050” high-pressure laminate surface. The 4” deep bottom shelf is 11/16” particle board core with .050” high-pressure laminate face and .030” phenolic backer. The bottom shelf is self edged.
  • Transaction Top and Support Assembly: Transaction Top work surface is 11/16” particleboard core with .050” high-pressure laminate faces and 3mm PVC banding. Transaction top supports are 1-1/8” particleboard core with .050” high-pressure laminate faces and are self edged. Transaction top support assembly is 1-1/8” particleboard core with .050” high-pressure laminate or premium oak veneer (unless another species is specified) and self edged. (Transaction top is typically not included in construction of returns).

Overall Dimensions
Depth: 30"
Widths: 84", 96", 120"
Worksurface Height: 30"
Transaction Top Height: 42"

Return Unit Overall Dimensions
Depth: 30"
Widths: 36", 42", 48"
Height: 30"

Finishes

Amber Maple7012 58
Laminate - Wood Grain

OPTIONS: 11

Our Wood Grain laminates are designed to match our Oak and Maple Finishes.
* Wood is a natural product and laminate is manufactured. The grain and color may vary.

9311 58 Silver Oak Herringbone
General Laminates

OPTIONS: 28

Choose from any currently available standard high pressure laminate or check out other available options from

Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Nm Natural Maple
Finishes on Maple - Standard

OPTIONS: 6

Actual colors may differ slightly from displayed representations.

No30 Natural Oak
Finishes on Oak - Standard

OPTIONS: 7

Actual colors may differ slightly from displayed representations.

Hardrock Maple - CP20332
PVC

OPTIONS: 25

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.
