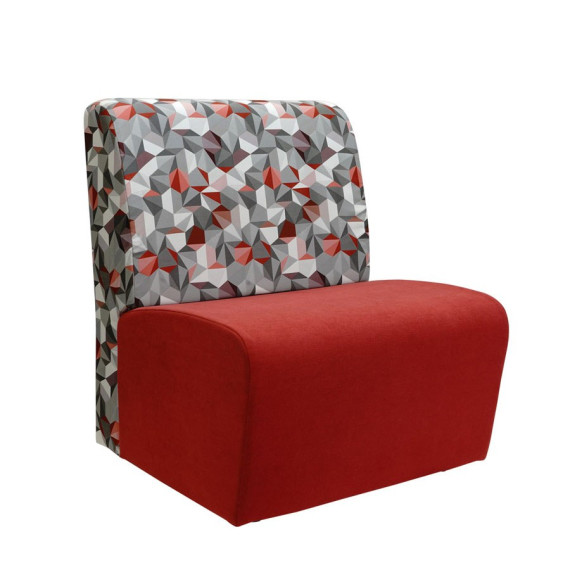

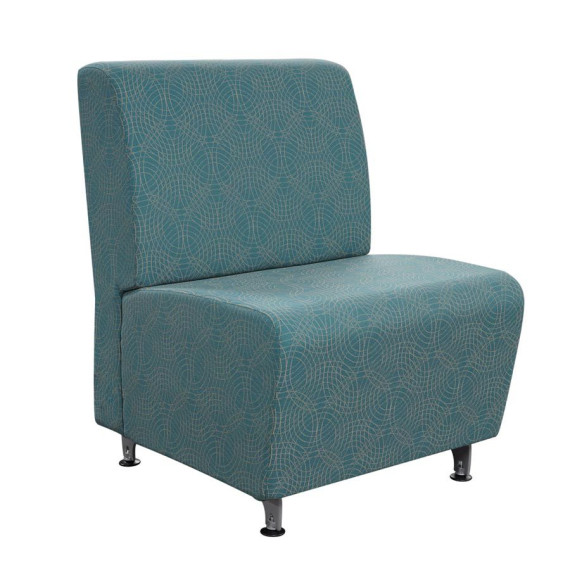

ENA-2529-4D Engage Armless

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

ENAJ-2529

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

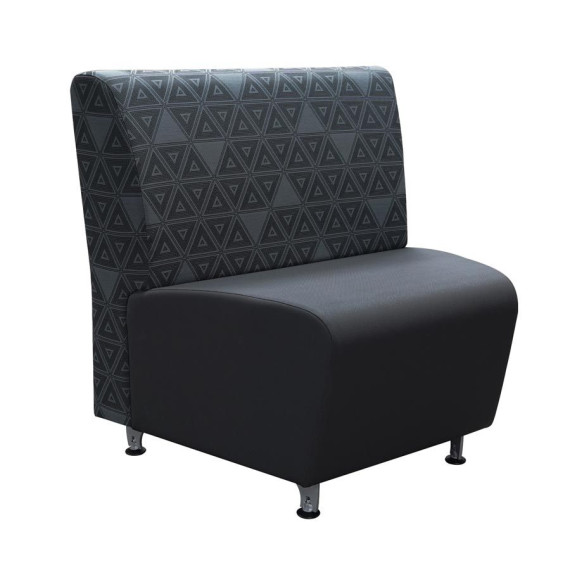

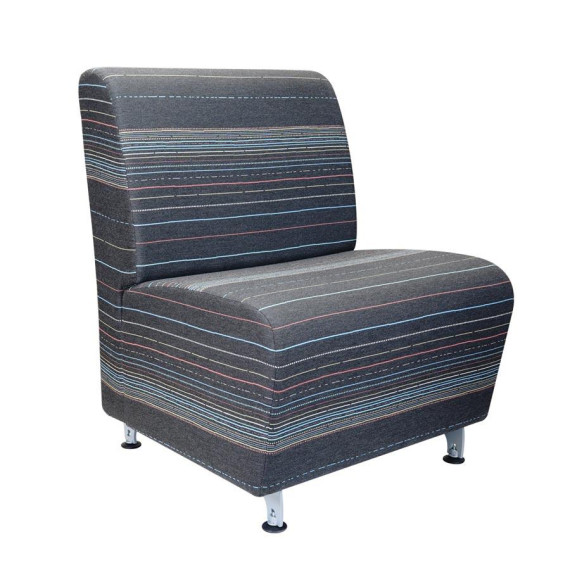

ENA-2529-4D Engage Armless

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

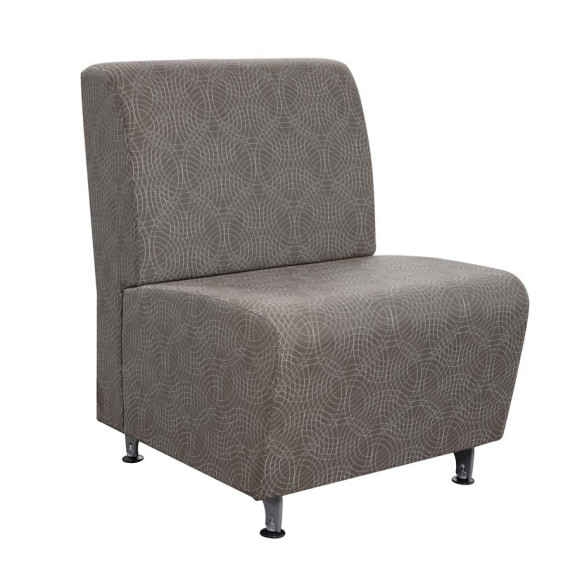

ENA-2529 - Engage Armless - Roundabout

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

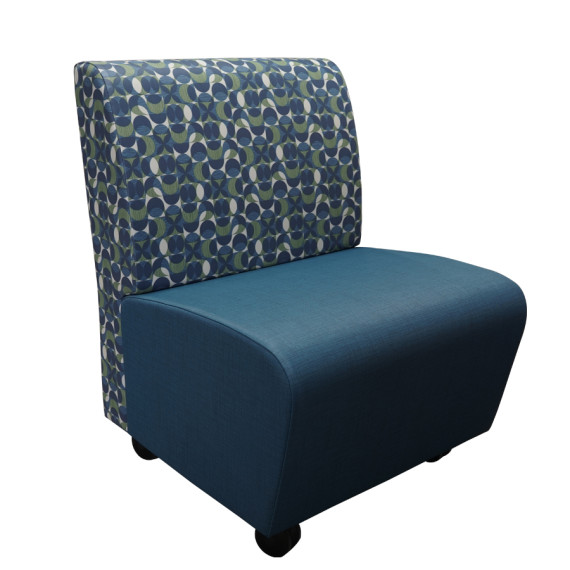

ENA-2529-4C

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

EN-3029-4D

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

ENAW-3035-4D

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

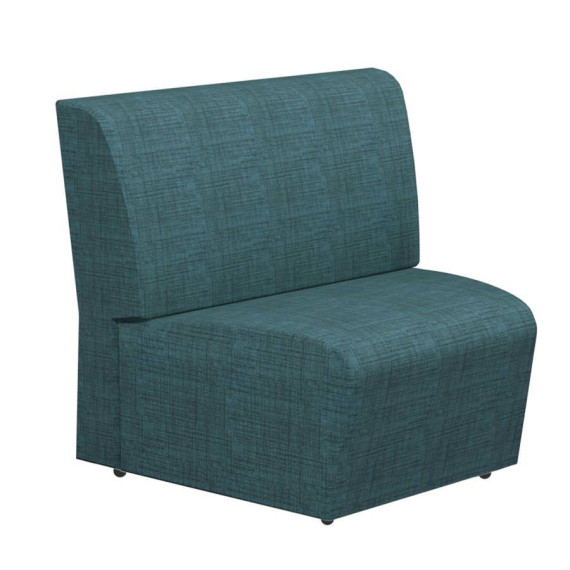

ENAWJ-3035-16

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

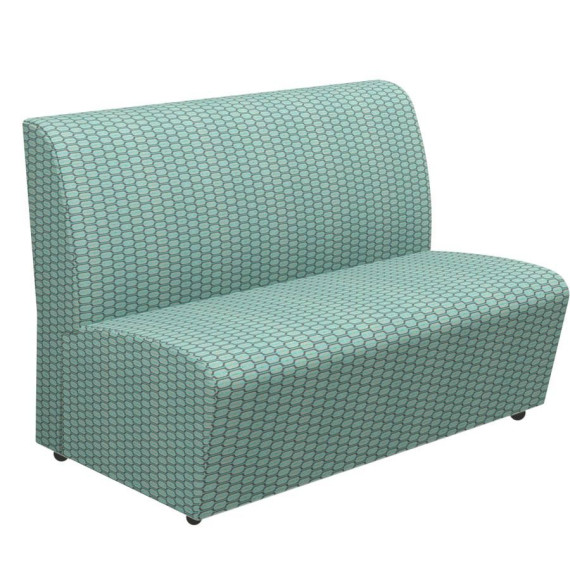

ENAJ-4829

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

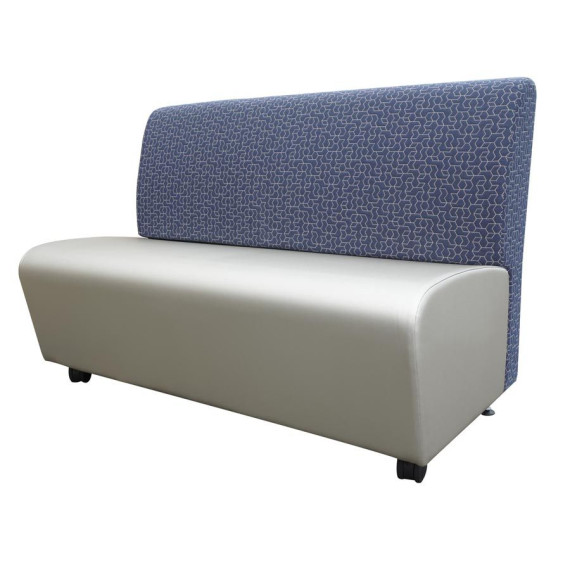

ENA-4829-2D

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

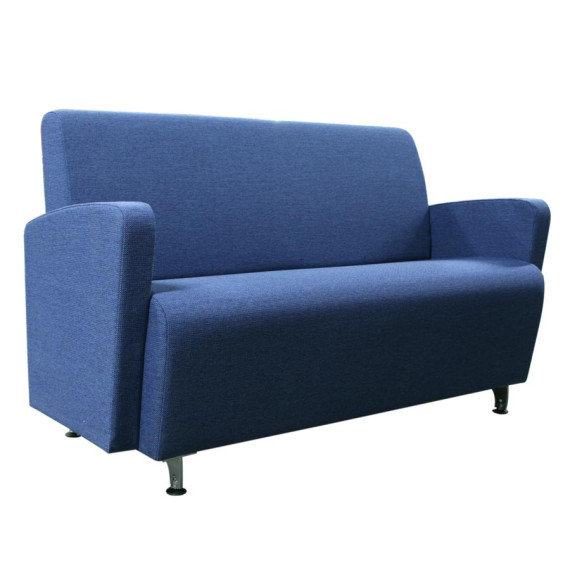

EN-5329-4D

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

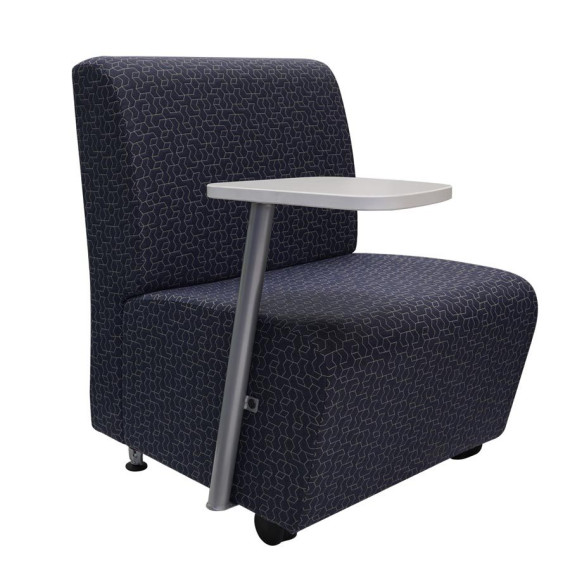

ENATR-2529-2D

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

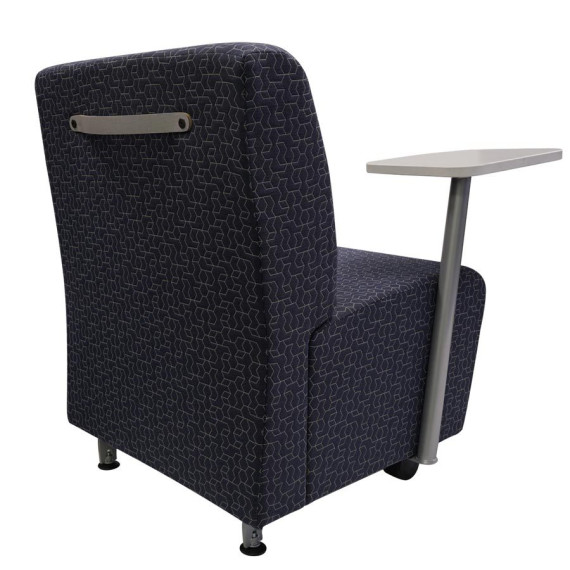

ENATR-2529-2D - rear view

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

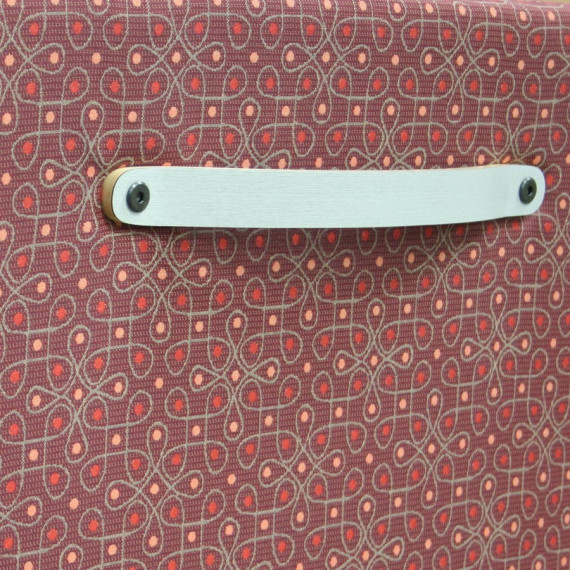

Handle detail

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

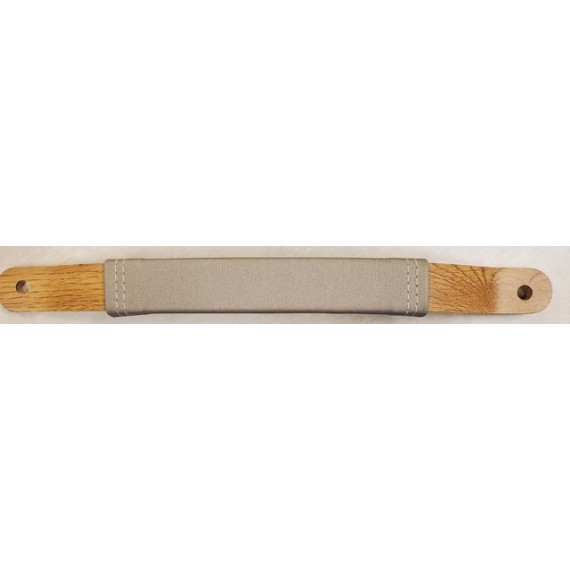

Engage Fabric Handle Wrap available -  EN-HDWP

Add to My Project Board

Log in or create an account to create a project board.

Engage - mediatechnologies

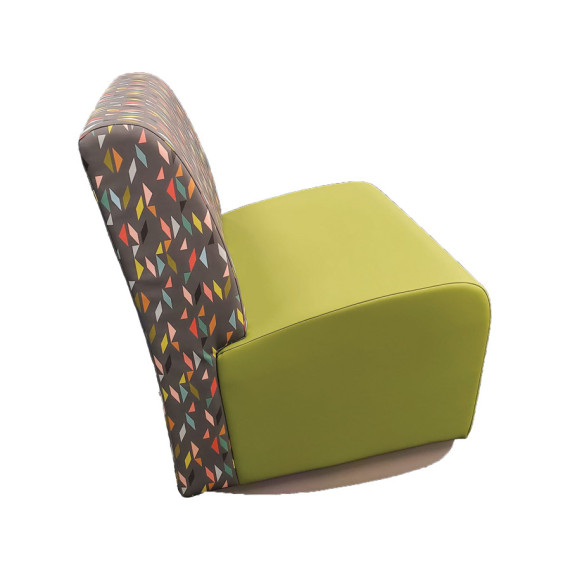

Engage Rocker

Add to My Project Board

Log in or create an account to create a project board.

Engage

One arm, two arms, no arms... wheels?! Engage seating provides the versatility of a single chair with configuration options to create interesting layouts within your space. Fully upholstered with your choice of fabric. Choose from a powder coated steel Duo leg with adjustable black glide, steel post leg, wood legs, casters or even a Rocker Base! Caster option comes with mobility pull handle. Add connectivity or tablet arm to increase usage type or both.

Oh Hey! Check out the Engage Jr's! Lots of folks wanted Engage Seats for the shorter
clientele. Here they are - great lounge seating - just a bit shorter. Deja vu!
*Available only as armless (ENAJ-2529-16, ENAJ-4829-16, ENAWJ-3035-16)

See Full Description

Cut Sheets
Forms
AutoCAD
Revit
Revit Materials
List Price Sheets
Brochures

    • Seat: Engage seat is constructed with 4/4 Alder hardwood and is glued and stapled. 4/4 hardwood corner blocks are glued and stapled to the inner seat frame. The seat is then covered with 5” of foam with 1.8 density and a 36 ILD rating.
    • Back: The back is constructed with 4/4 Alder hardwood and is glued and stapled. 4/4 hardwood corner blocks are glued and stapled to the inner back frame. The back is then covered with 2.5” of foam with 1.8 density and a 24 ILD rating. The back is secured to the seat with T-nuts and 4 bolts.
    • Arms: are constructed with 4/4, 5/4 and 6/4 Alder hardwood and is glued and stapled. 4/4 hardwood corner blocks are glued and stapled to the inner frame. The arms are then prepared with emelin and covered with 1/2” of foam. Arms are attached to the seat and back frame with T-nuts and 3 bolts. Note: Arms are identified as “right” or “left” from the perspective of one who is seated in the seat.
    • Tablet Arm: Tablet arm work surface is 3/4” thick. Top of work surface is .050 high-pressure laminate with .030 phenolic backer. Work surface is mounted to a powder coated steel tube which is fixed to the seat frame. Edgebanding is 3mm PVC.

    • Connectivity Options: Engage Seating can be fitted with the Duet connectivity accessory on the right or left side of the seat. Use the suffix -ER to indicate connectivity location to be the right side or use -EL to indicate connectivity location to be the left side. Note: “Right” and “left” are determined from the perspective of one who is seated in the seat.

    • Rocker Base Option: Two 5/4 Hardwood rails. Thermally Fused Laminate board make up the rocking base. Base is attached to the Engage seat using screws. *Available only on Engage and Engage Armless (EN-3029 & ENA-2529).

    • Engage Fabric Handle Wrap available - EN-HDWP

    Model Number Suffixes for legs, casters and rocker base:
    -4D – metal Duo legs
    -2D – 2 Duo legs and 2 casters
    -4S – 4 metal legs
    -2S – 2 metal legs and 2 casters
    -4W – 4 wood legs
    -2W – 2 wood legs and 2 casters
    -4C – 4 casters
    -RB – Rocker Base

    Overall Dimensions
    Depths: 29", 35"
    Widths: 25", 28", 30", 48", 51", 53"
    Overall height: 33.5"
    Seat height: 18"

    Engage JR.

    • Seat: Engage JR. seat is constructed with 4/4 Alder hardwood and is glued and stapled. 4/4 hardwood corner blocks are glued and stapled to the inner seat frame. The seat is then covered with 5” of foam with 1.8 density and a 36 ILD rating.
    • Back: The back is constructed with 4/4 Alder hardwood and is glued and stapled. 4/4 hardwood corner blocks are glued and stapled to the inner back frame. The back is then covered with 2.5” of foam with 1.8 density and a 24 ILD rating. The back is secured to the seat with T-nuts and 4 bolts.
    • Glides: Seats are fitted with 1”H ABS self-leveling glides.
    • Connectivity Options: Engage JR. Seating can be fitted with the Duet connectivity accessory on the right or left side of the seat. Use the suffix -ER to indicate connectivity location to be the right side or use -EL to indicate connectivity location to be the left side. Note: “Right” and “left” are determined from the perspective of one who is seated in the seat.

    Overall Dimensions
    Depths: 29", 35"
    Widths: 25", 30" (wedge), 48"
    Overall height: 31.25"
    Seat height: 16"
