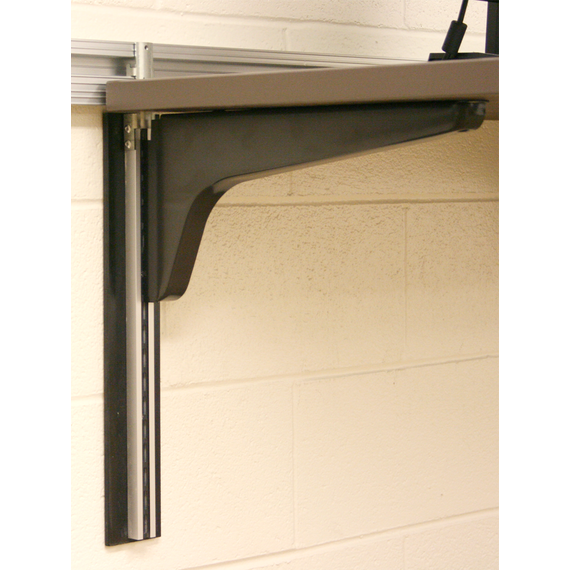

Worksurface Support Arm and Vertical Standard attached to Track and Worksurface

Add to My Project Board

Log in or create an account to create a project board.

elements™ Counter - mediatechnologies

WSCS - Worksurface Corner with Straight Corner

Add to My Project Board

Log in or create an account to create a project board.

elements™ Counter - mediatechnologies

WSCR - Worksurface Corner with Radiused Corner (Concave Curve)

Add to My Project Board

Log in or create an account to create a project board.

elements™ Counter - mediatechnologies

WS - Rectangular Worksurface

Add to My Project Board

Log in or create an account to create a project board.

elements™ Counter - mediatechnologies

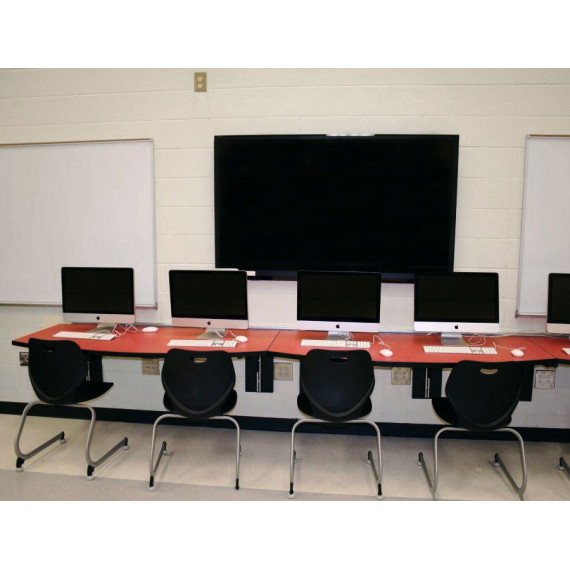

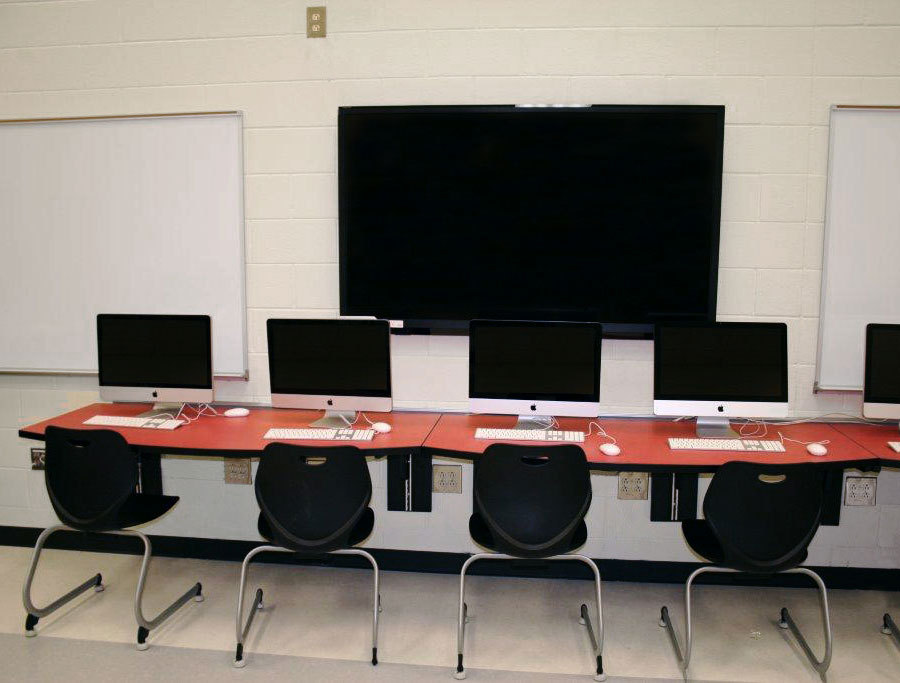

elements™ Counter with WSB Worksurface

Add to My Project Board

Log in or create an account to create a project board.

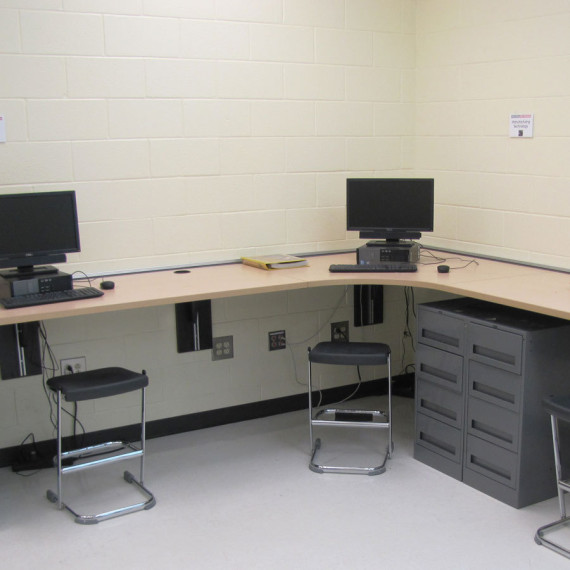

elements™ Counter

By Elements

Whether you are adding an entire computer lab or simply adding a workstation to your space, elements™ counters are a comprehensive and flexible solution.  Since the surfaces are track-mounted, if your needs change, you can easily remove or reconfigure them.

See Full Description

Videos

elements™ Counters are typically constructed from the following components. (there are, of course, other surface shape possibilities:

WS - Rectangular Worksurface

  • Depths - 20", 24", 30"
  • Widths - 30", 36", 42", 48", 60", 72", 84", 96", 120", 144"
  • Square - 30 x 30", 36 x 36"

WSCS - Corner Worksurface with Straight Edge

  • Widths - 42", 48"
  • Returns - 24/24", 30/24", 24/30", 30/30"

WSCR - Corner Worksurface with Radius (Concave Curve) Edge

  • Widths - 42", 48"
  • Returns - 24/24", 30/24", 24/30", 30/30"

HT-96 - Horizontal Mounting Track (yeah, kinda have to have it)

  • Anodized aluminum
  • 8ft sections

HTAEC - End Caps for Track

HTACS - Track Connector Splice

  • Use for aligning and connecting two sections of track

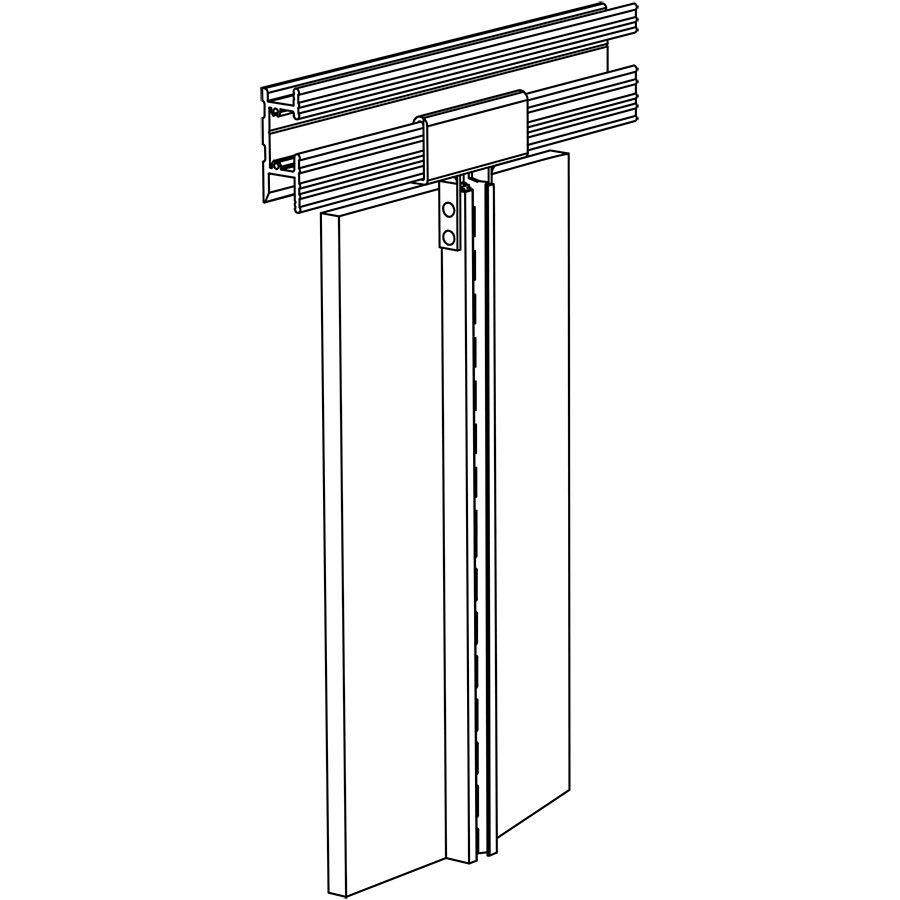

VST - Adjustable Vertical Standard Track

  • Attaches to lower horizontal track
  • Allows worksurface support arm to attach at adjustable heights 23" to 29"H at one inch intervals.

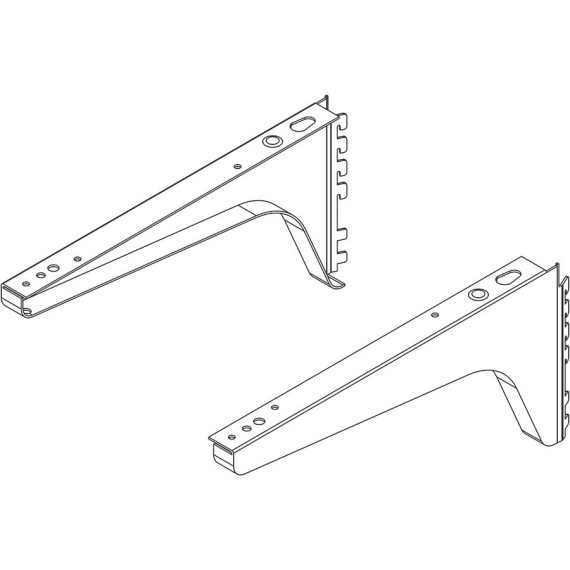

WSA - Worksurface Support Adjustable Arm

  • Adjustable height support arm
  • Right (WSAR) and Left (WSAL) Arms available
  • Attaches to Worksurface and to the Vertical Standard Track
  • Depths - 16", 22"

Other available hardware includes:

  • Horizontal track mounting hardware
  • Worksurface mending plate for joining worksurfaces
  • Worksurface support bracket

elements™ is a very flexible product line.  Through the addition of available storage and support components, the possibilities are only as limited as your imagination.

Finishes

Amber Maple7012 58
Laminate - Wood Grain

OPTIONS: 11

Our Wood Grain laminates are designed to match our Oak and Maple Finishes.
* Wood is a natural product and laminate is manufactured. The grain and color may vary.

Hardrock Maple - CP20332
PVC

OPTIONS: 25

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.

9311 58 Silver Oak Herringbone
General Laminates

OPTIONS: 28

Choose from any currently available standard high pressure laminate or check out other available options from

Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.
