• Cabinet Base/Toe: The inside front and side panels that comprise the base cabinet, including the toe, shall be 3⁄4” particleboard core with 3mm banding on the bottom edge and .5mm banding on the exposed side edges. Panels are joined with glue and dowel construction. Panels shall be finished on both faces in high-pressure laminate or premium wood veneer (unless another species is specified). The cabinet base shall include a sub top of 3⁄4” particle board core with 3mm banding on the user edge.

• Decorative Overlay Panels: Decorative front and side overlay panels are 3⁄4” particleboard core with .050” high-pressure laminate or sequenced premium oak veneer faces (unless another species is specified) with .5mm banding. Top overlay panel is 2-7/8” O.A. height. Middle overlay panel is 16-7/17” O.A. height. Lower overlay panel is 2-7/8” O.A. height.
• Work Surface: The worksurface shall be 1-1/8” particleboard core with .050” high-pressure laminate and .030” phenolic backer surfaces. The worksurface shall receive 1⁄4” wood banding.
• Transaction Top: Transaction Top worksurface is 1-1/8” particleboard core with .050” high- pressure laminate faces and 1⁄4” wood banding. Transaction top supports are 3⁄4” particleboard core with .050” high-pressure laminate faces and 3mm banding. Transaction top front and side faces are 3⁄4” particleboard core with .050” high- pressure laminate or premium oak veneer (unless another species is specified) with 3mm banding. There is a mitered joint between front and side faces. (Transaction top is typically not included in construction of returns).

Main Unit Overall Dimensions
Depth: 30"
Widths: 84", 96", 120"
Transaction Height: 42"
Worksurface Height: 29"

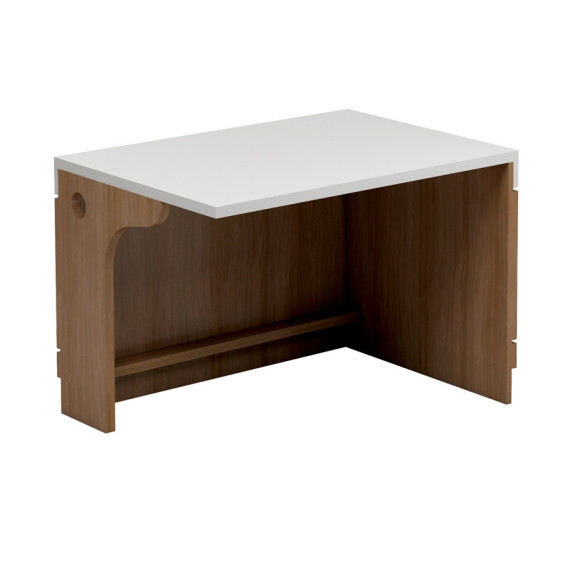

Return Unit Overall Dimensions
Depth: 30"
Widths: 36", 42", 48"
Height: 29"
