Derby

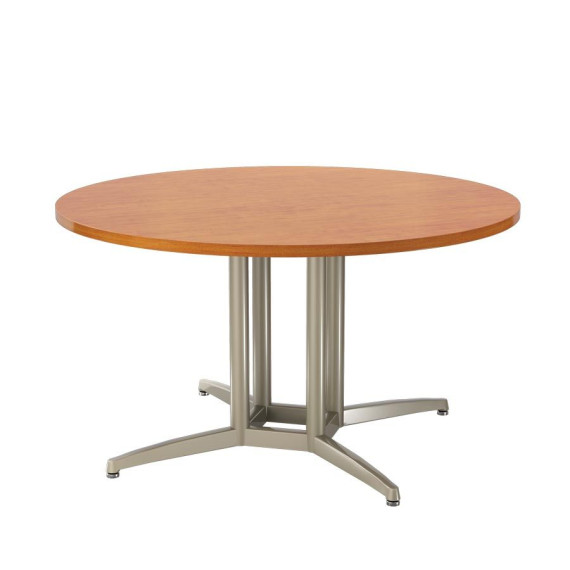

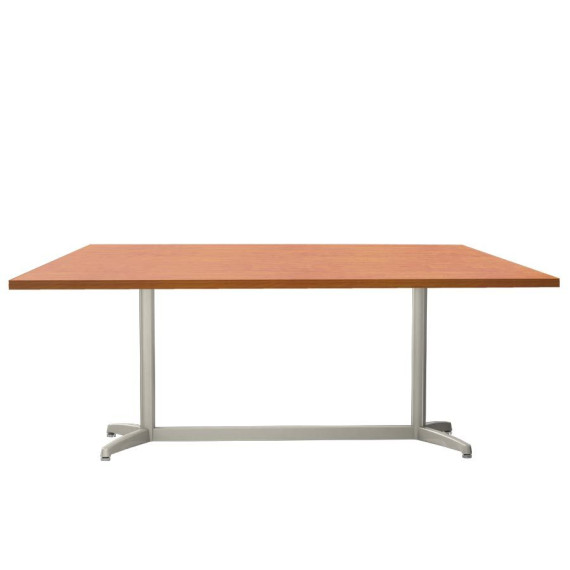

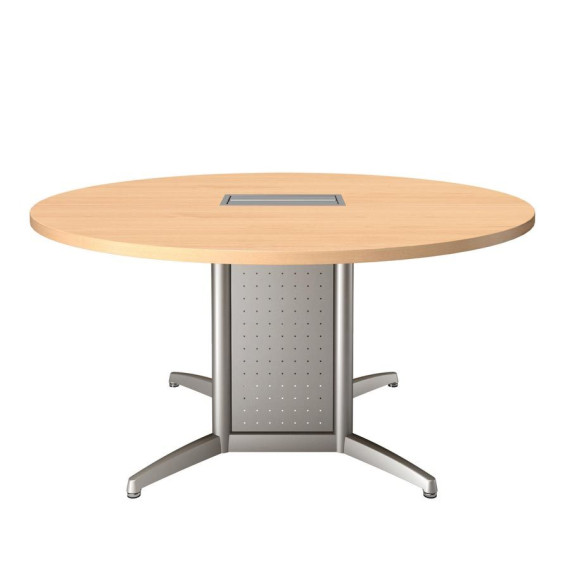

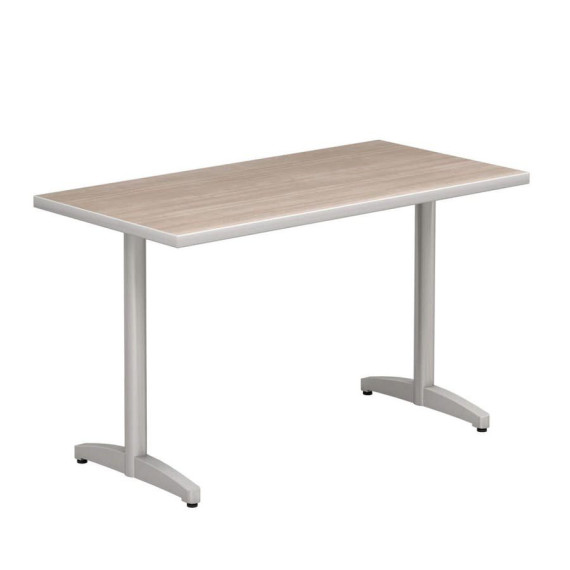

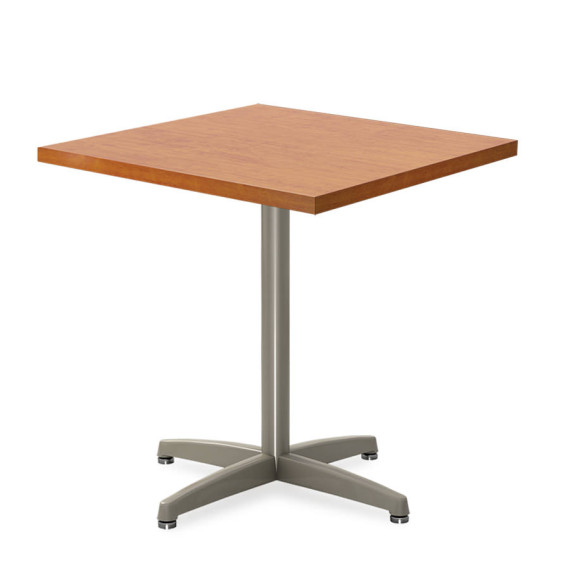

Derby x-base and t-base tables add classic styling in a modern look. Flip-top mechanisms available for some models, pairs well with Surfboard, casters and leveler extensions available in leu of standard leveling glides. Choose a laminate finish for the table top and powder coat color for frame. Multiple edge Surfboard options available to match the style of your space. Derby tables are available in multiple shapes, sizes and heights.

See Full Description

Cut Sheets

Derby Cuts Sheet (.pdf, 1.891 MB)

Forms

Derby Installation & Assembly Guide (.pdf, 671.429 KB)

AutoCAD

Derby AutoCAD (.zip, 10.11 MB)

Revit

Derby Table - Sprocket (.zip, 671.456 KB)
Derby Table - Flair (.zip, 960.751 KB)

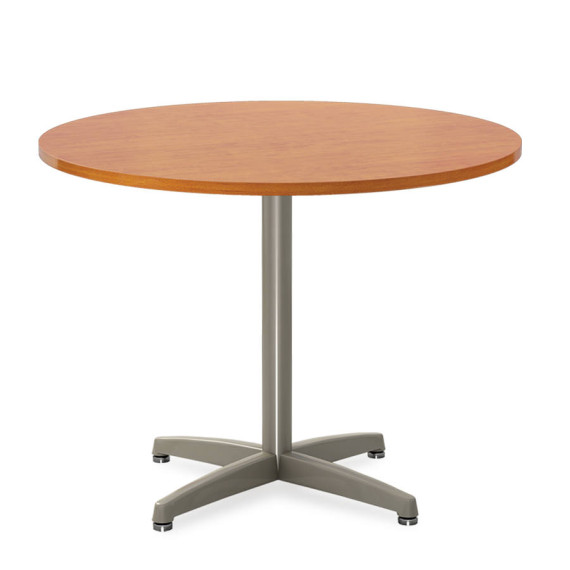

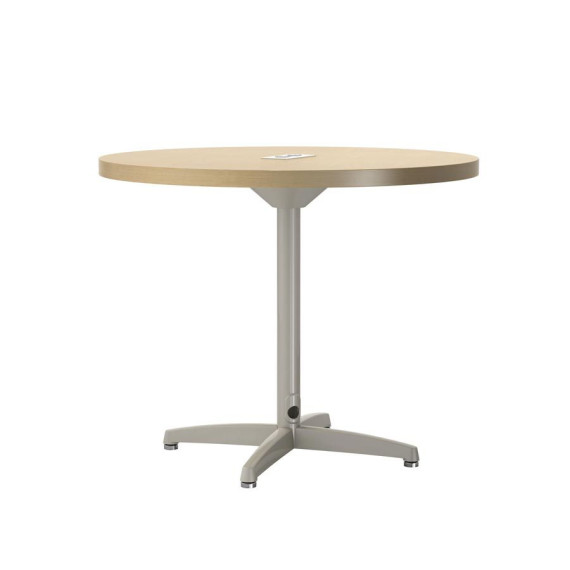

Derby Cafe Table - Round (.zip, 795.526 KB)

List Price Sheets

Derby Tables List Price Sheet (.pdf, 2.655 MB)

Overview

Cast aluminum base has 2-1/4" diameter column with bolted horizontal cast aluminum base and fabricated steel mounting plate .187" thick x 6"D x 8"W.

Can be specified to be adjustable height via a spring clip mechanism, range is 9". (26-35”H is standard range)
Tops are 1-1/4" thick, three-ply engineered wood construction with .050" high pressure laminate tops and a phenolic backer sheet.
Edges available: 3mm PVC (C); 3mm hardwood (E); 5/8" wood (G); 1-1/4" hardwood bullnose (L); 5/8" wood bevel (J); 8mm Wood (F).
Flip top mechanism: Two-part steel mechanism is joined via a pivot system. upper component attaches to underside of work surface using 1" #12 wood screws. Lower component bolts to the leg frame via a threaded insert.
Casters available
Leveler extensions available

Overall Dimensions
Depths: 24", 30", 36", 48", 60"
Widths: 36", 48", 60", 72", 84", 96", 120", 144"
Diameters: 36", 42", 48", 54", 60"

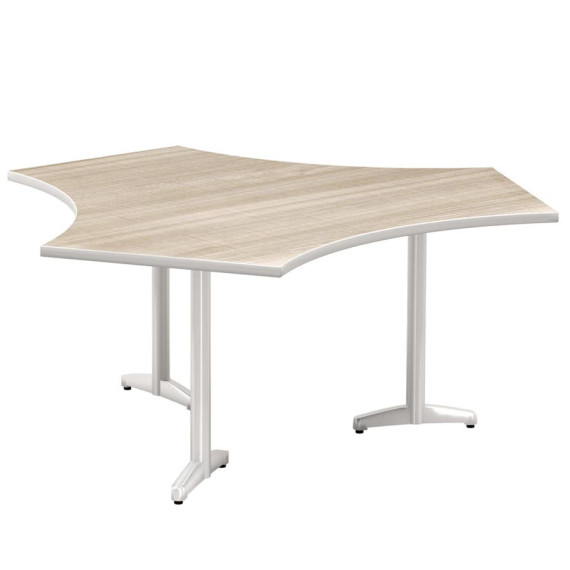

"Sprocket" top table width: 60"
Height: 29"

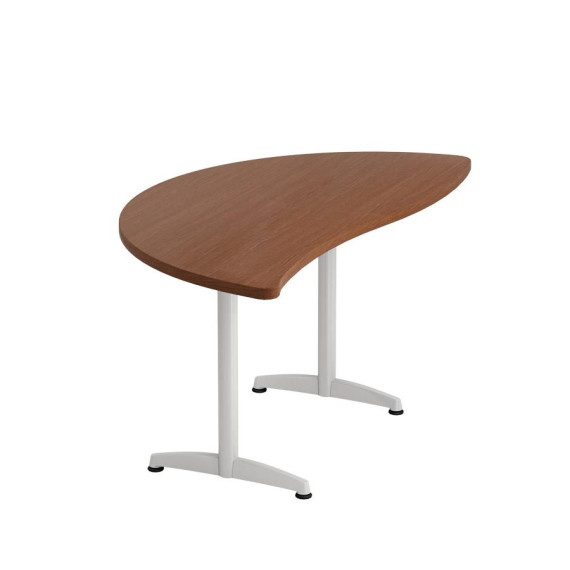

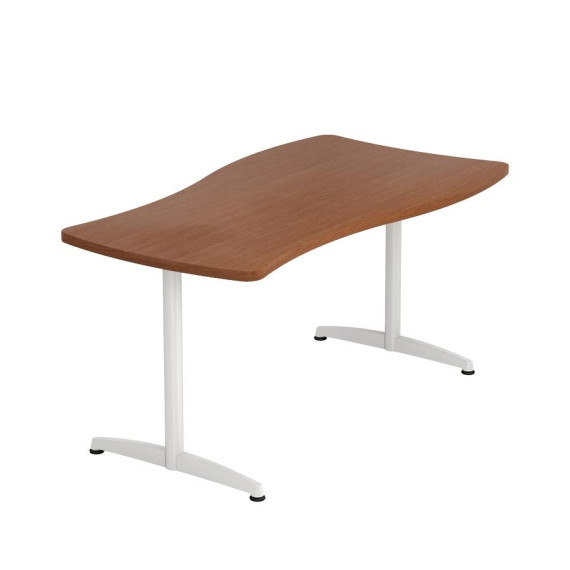

"Sprocket, Beanie and Flair" top tables have 2" radiused corners
