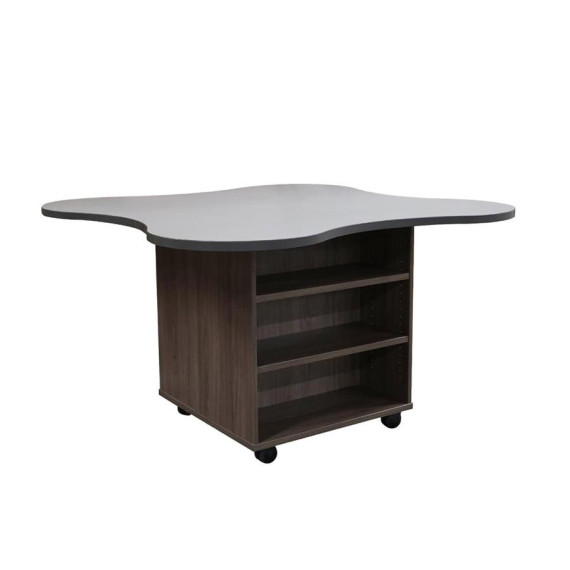

Top: WBXI-C5454CL; Cabinet: WBXI-OS3036-TT-MOB

Add to My Project Board

Log in or create an account to create a project board.

Work+Box Island - mediatechnologies

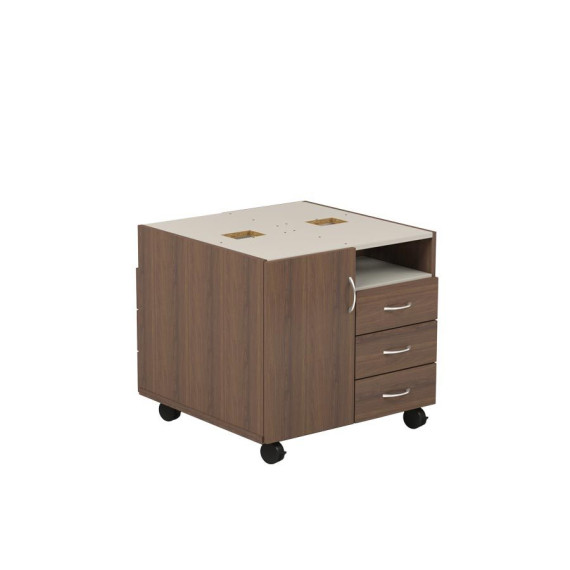

WBXI-CS3D3029

Add to My Project Board

Log in or create an account to create a project board.

Work+Box Island - mediatechnologies

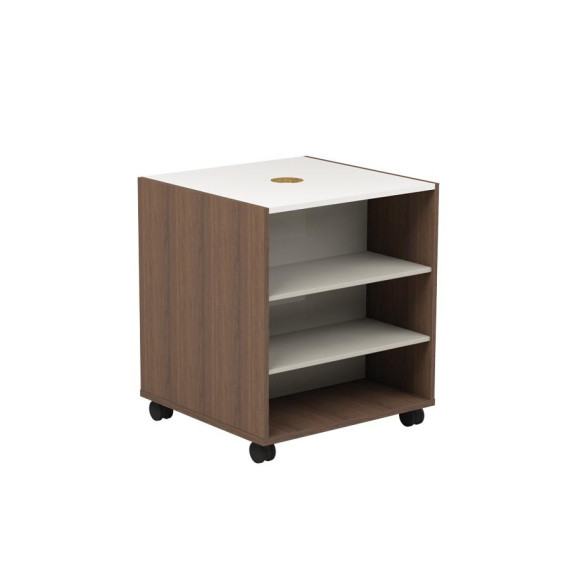

WBXI-OS3036

Add to My Project Board

Log in or create an account to create a project board.

Work+Box Island - mediatechnologies

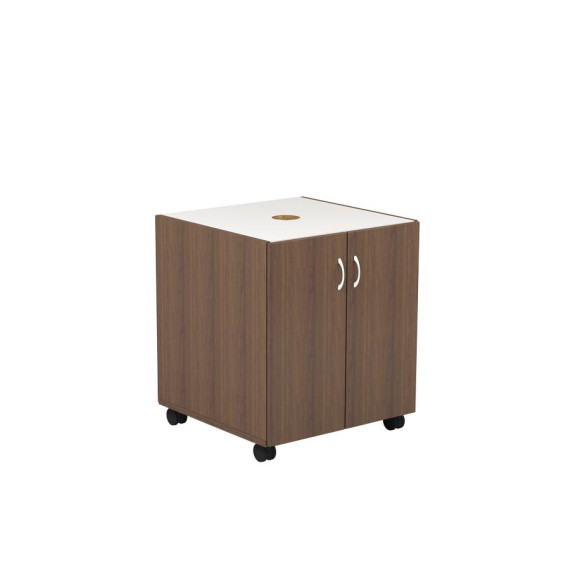

WBXI-CS3036

Add to My Project Board

Log in or create an account to create a project board.

Work+Box Island - mediatechnologies

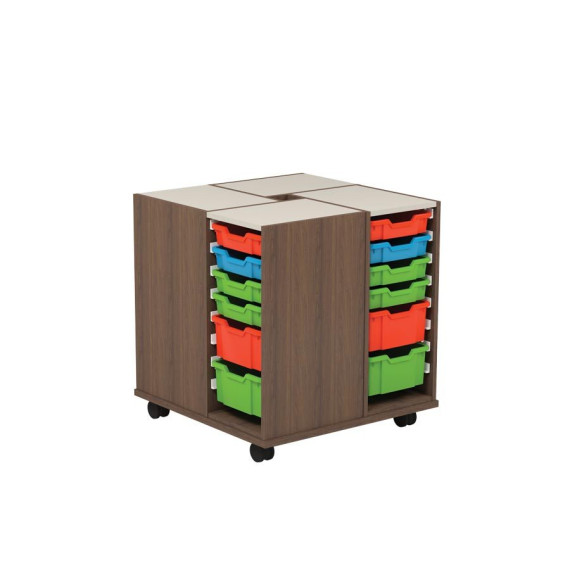

WBXI-OT3036 (totes sold separately)

Add to My Project Board

Log in or create an account to create a project board.

Work+Box Island - mediatechnologies

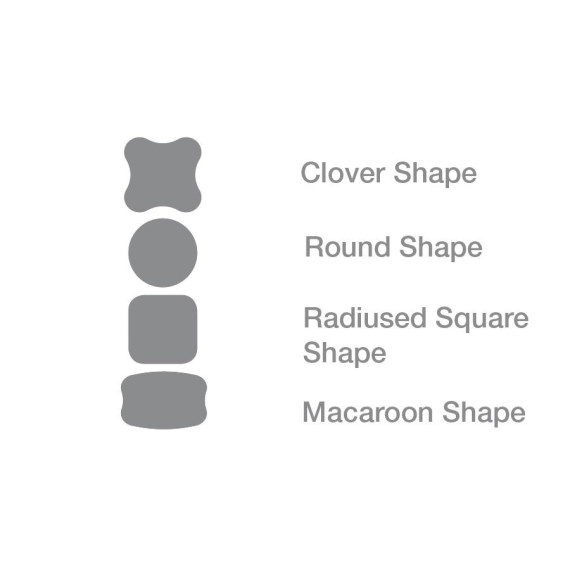

Work+Box Table top shapes

Add to My Project Board

Log in or create an account to create a project board.

Work+Box Island

Clover shaped cabinet table. Top consists of laminate of your choice, with 3mm PVC edging. The top sits upon a cupboard/drawer cabinet base that awaits your choice of high pressure laminate or veneer finish. Each table is equipped with (4) casters for mobility.

See Full Description

Cut Sheets
AutoCAD
List Price Sheets
Revit
Revit Materials

  • Clover shaped top consists of contoured work surface 1-1/4" thick, three-ply 45# particle board construction with .050" high pressure laminate top surface and .030" phenolic backer.
  • Edge is 3mm PVC with a 1/8" radius top and bottom.
  • Cabinet base is constructed of 3/4" thick three ply particleboard with either high-pressure laminate or melamine throughout, with exception of base, which is 1-1/4" thick. Cabinets are assembled using glue and dowel joinery.
  • Cupboard door is constructed of 3/4" thick, three-ply particle board with high-pressure laminate or melamine faces and edged on all sides with 3mm PVC.
  • Door hardware includes loop pulls (P2) concealed hinges (H3), fully adjustable in all 3 axes. Door lock options are available
  • 1 adjustable cupboard shelf is 3/4" thick three ply engineered wood with high-pressure laminate faces. The exposed edges are edged with 3mm PVC. Shelves are adjustable on 32mm increments.
  • Full 4-sided drawer boxes use 3/4" thick material with high pressure laminate or melamine and 3mm PVC edges. Drawers feature full extension slides. Drawers are non-locking.
  • Stop-tilt-remove tote rails are used on open tote storage units. Rails are spaced so that one 5.9"H F2TBB tote fits in place of two 3"H F1TBA totes. Totes are sold separately.
  • (4) 3" Locking casters are standard. Casters are mounted to bottom through a steel plate using 4 wood screws each.

Pick your top shape: Clover, Round, Radiused square or Macaroon Overall Dimensions Clover Shape Depths: 48", 54", 60" Clover Shape Widths: 48", 54", 60" Round Diameters: 48", 54", 60" Radiused square Depths: 48", 54", 60" Radiused square Widths: 48", 54", 60" Macaroon Depth: 54" Macaroon Width: 72"

Pick your cabinet: Cupboard, drawer and open storage; Open storage;Cupboard storage; Open tote storage (totes sold separately)

Overall Dimensions
Depths: 30" (33" for Open Tote Storage)
Width: 30" (33" for Open Tote Storage)
Height: 29", 36", 42"

Open Tote Storage Tote Capacity based on F1TBA Tote

  • 29"H Unit - 6 totes per face (4 faces), 24 totes total
  • 36"H Unit - 8 totes per face (4 faces), 32 totes total
  • 42"H Unit - 10 totes per face (4 faces), 40 totes total

Note: One 6"H F2TBB tote fits in place of two 3"H F1TBA totes.

Finishes

9311 58 Silver Oak Herringbone
General Laminates

OPTIONS: 28

Choose from any currently available standard high pressure laminate or check out other available options from

Formica: Premium patterns or surface finishes may be specified but will incur an up-charge. Please contact factory.

Stainless Aluminum w/ Rio Texture (G1)
Melamines (TFL)

OPTIONS: 16

Coordinating PVC and HPL finishes are available for most melamine selections. PVC not available for Stainless Aluminum.

Hardrock Maple - CP20332
PVC

OPTIONS: 25

PVC Applies to front edges as well as work surface edges in 3mm PVC.

* Indicates available for work surfaces only.
