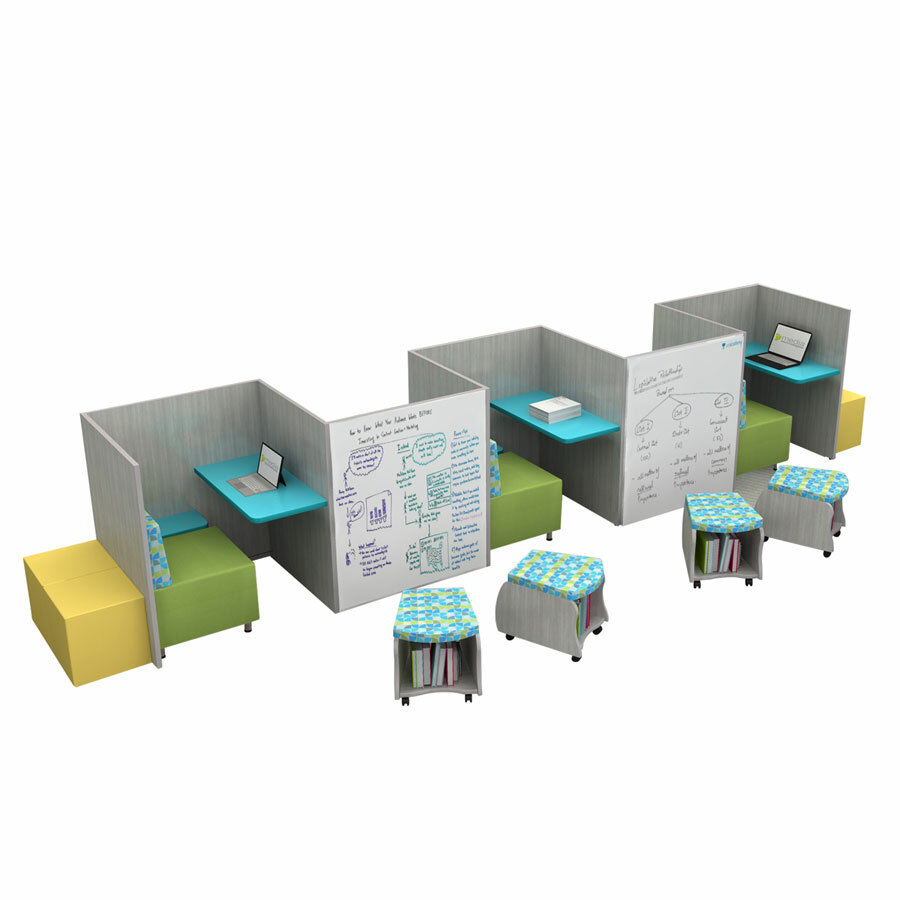

Cabana Kit shown with Blox, Full Time Halfbacks and RoJons

Add to My Project Board

Log in or create an account to create a project board.

Cabana

Cabana Panel End Study Carrels are your cubicle-shaped oasis of privacy for focused tasks. Pair with your favorite seating for the perfect blend of comfort and privacy. Each carrel is provided with a double hook and a side shelf for storage while you get-down-to-business on the high-pressure laminate work surface. A grommet and a wire management channel keep cabling neat and out of the way.

See Full Description

Cut Sheets
AutoCAD
List Price Sheets

  • Worksurface / Side Shelf:
  • Worksurface and Side Shelf are 1-1/4" thick, three ply engineered wood construction with .050" high pressure laminate and a phenolic backer sheet. Worksurface and Side shelf are banded with 3mm PVC. Worksurface is 18”D x 38-3/8”W. Exposed corner has a 3” radius. Side Shelf is 10”D x 23”W. Exposed corner has a 3” radius. Worksurface and Side Shelf are attached with M6 x 1mm x 10mm pan head truss screws to the side and back panels with (4) steel Z brackets that are located in dado in underside of top. Worksurface includes (1) 80mm grommet and wire management channel.
  • Back Panels:
  • Panels are 1-1/4" thick, three ply engineered wood construction with .050" high pressure laminate on both sides. Back panels are 1-1/4” thick x 41-5/8”D x 48”H. Panels are banded with 3mm PVC on the top and bottom edge and have embedded threaded metal inserts to accept machine threaded connecting hardware for metal-to-metal fastener contact. Steel double hook is mounted on back panel with mounting screws.
  • End / Intermediate Panels:
  • Panels are 1-1/4" thick, three ply engineered wood construction with .050" high pressure laminate on both sides. Side/intermediate panels are 1-1/4” thick x 38”D x 48”H. Panels are banded with 3mm PVC on all edges and have embedded threaded metal inserts to accept machine threaded connecting hardware for metal-to-metal fastener contact. Each side/intermediate panel is equipped with two adjustable leveling glides with nylon feet.
  • Worksurface Height:
  • The standard height is 29".
  • Side Shelf Height:
  • The standard height is 16".
  • Modular Design: Carrels may be assembled in starter/adder configuration. Adder units are similar to initial units but substitute one intermediate panel for two end panels.
